The Freedom Foamer: Tactical Strike Touch Free Vehicle Wash Kit

Only 4 left in stock

$1,199.00

* Important Note: This product comes with a 0.7mm orifice pre-installed, for a 100:1 dilution ratio—ideal for winter use when stronger cleaning power is needed.For summer conditions, especially when washing polished aluminum or aiming for more efficient soap usage, we recommend switching to a 0.6mm orifice for a slightly leaner mix.

FEATURES / SPECS

1. 44" CHEM-X FREEDOM FOAMER LANCE:

Olight Odin 2000 Lumen Tactical Flashlight
Stainless Steel KEW connects
Replacement Foam Agitator Pad + O-Ring
Veloci Prima Stainless Steel QC fittings made in the USA
ST-75s Foamer w/ KEW inlet for one handed operation
KEW to QC Adaptor for one-handed up close rinsing
Min/Max Flow Rate: 1-6GPM
Min/Max PSI: 1000-40000 PSI
Max Temp: 212° (Recommended Temp is 125°-130°)
Adjustable Vented Grip

MTM HYDRO SGS35 SHUT OFF GUN:

Easy Hold Technology for Increased Cleaning Efficiency
Italian Manufactured
Low Profile Stainless Steel Live Swivel
Mas PSI: 5000 PSI
Max Flow Rate: 12 GPM

2. SUTTNER ST-160 SINGLE STEP FOAM INJECTOR:

Min/Max Flow Rate: 1-6gpm
Min/Max PSI: 1000-4000psi
Rated for 194 degree water
Plug + Play
Uses 4-5x Less Soap Than Traditional Style Injectors
9 Dosing Nozzles Included
Durable Stainless Steel Construction

3. 1 GALLON OLD GLORY

THE FREEDOM FOAMER: TACTICAL STRIKE TOUCH FREE VEHICLE WASH KIT

44" Foam Lance with Kew Inlet

MTM Hydro SGS35 Trigger with Kew Outlet

Suttner ST-75 Foaming Nozzle with Stainless Steel Kew Plug

Stainless Steel KEW to 1/4" QC Adaptor

1 Gallon Old Glory Active Foam

Suttner ST-160 Foaming Injector

Deliver maximum impact with fully automatic remote soap injection and rapid push-button operation for single-step foam and rinse modes.

Ultimate Quality

The Chem-X Freedom Foamer was designed and hand built by Chem-X. We took the very best components and pieced them together in a layout with pure functionality and durability in mind. An almost fully stainless steel lance that is built to hold up in harsh environments. With this lance you can change between foam and rinse directly at the gun. The MTM Hydro Mezzo Shuttle Valve allows selection of either rinse or foam with the push of a button. By far the best foam lance on the market!

LEARN MORE

X Factor Complete Wash Bay System: Tactical Strike Wall Mounted 220v Electric - Freedom Foamer Touch Free Kit 3.5GPM @3,000PSI - Chem-X

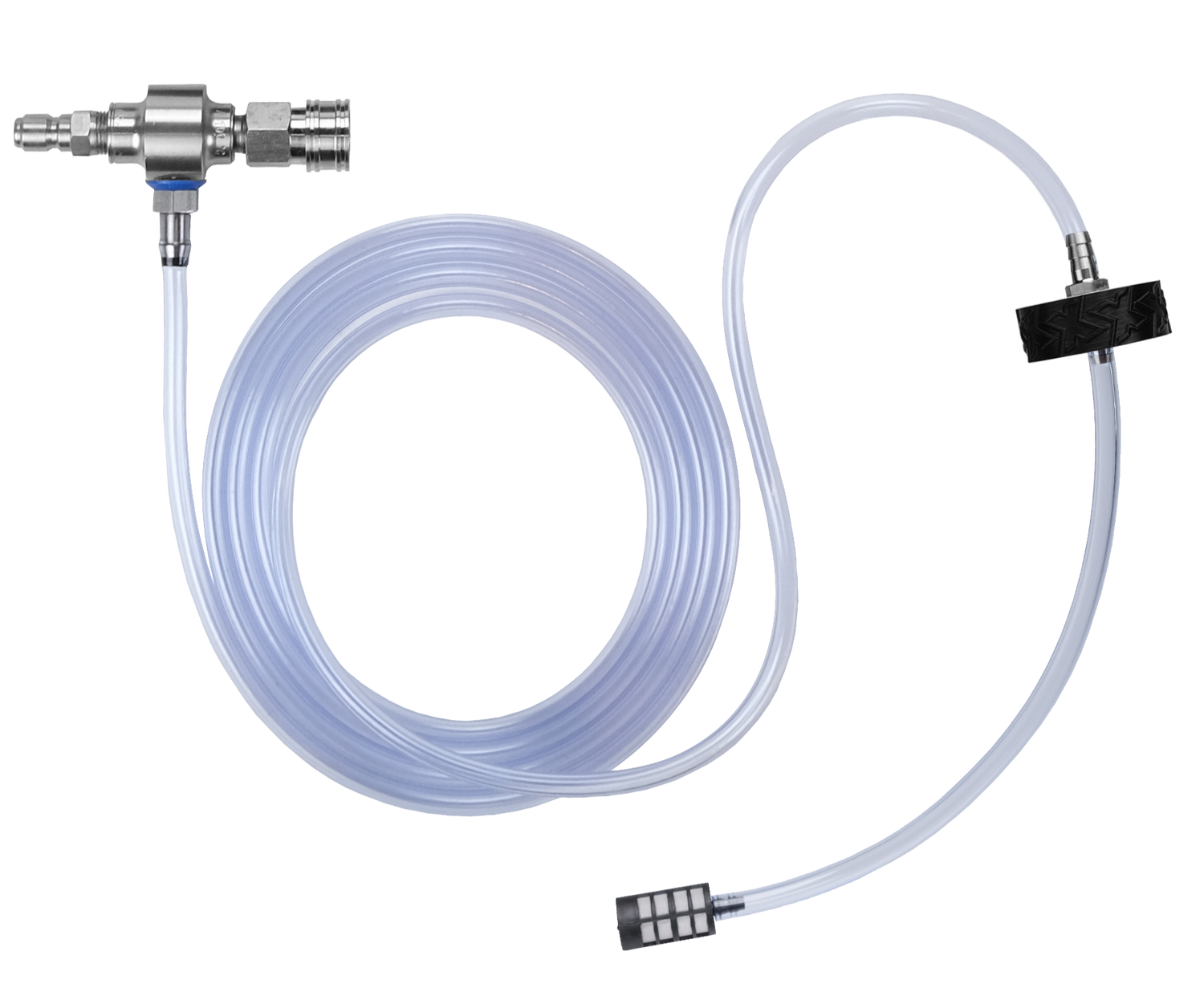

SUTTNER ST-160 SINGLE FOAM INJECTOR

An efficient and durable foam injector, available with a dilution range of 10:1 to 200:1. It automatically dilutes the soap to a predetermined strength, eliminating soap waste or pre-mixing. The ST-160 arrives pre-set by us to draw at 100:1 dilution (1%), the ideal strength for all of our super concentrated liquids.

LEARN MORE

MAINTENANCE TIPS

How To Install:

1. Connect ST-160 injector after power washer and before your high psi hose. The ST-160 will be made ready with a stainless 3/8" quick connect plug on the inlet and a stainless 3/8" quick connect socket on the the outlet.

2. Place chemical pick up tube directly into soap.

3. Foam all of the things!

TIPS:

Injector will be set to run at 100:1 unless specified otherwise, this can be changed by simply changing metering tip inside injector barb.

If using a hot water machine, scale build up from your coil can plug injector or foam head. On start up always run with injector in rinse mode for about 30-60 seconds to flush out any build up.

If a jumper hose is needed to go from your power washer to ST-160 injector please see our selection of hoses in accessories.
