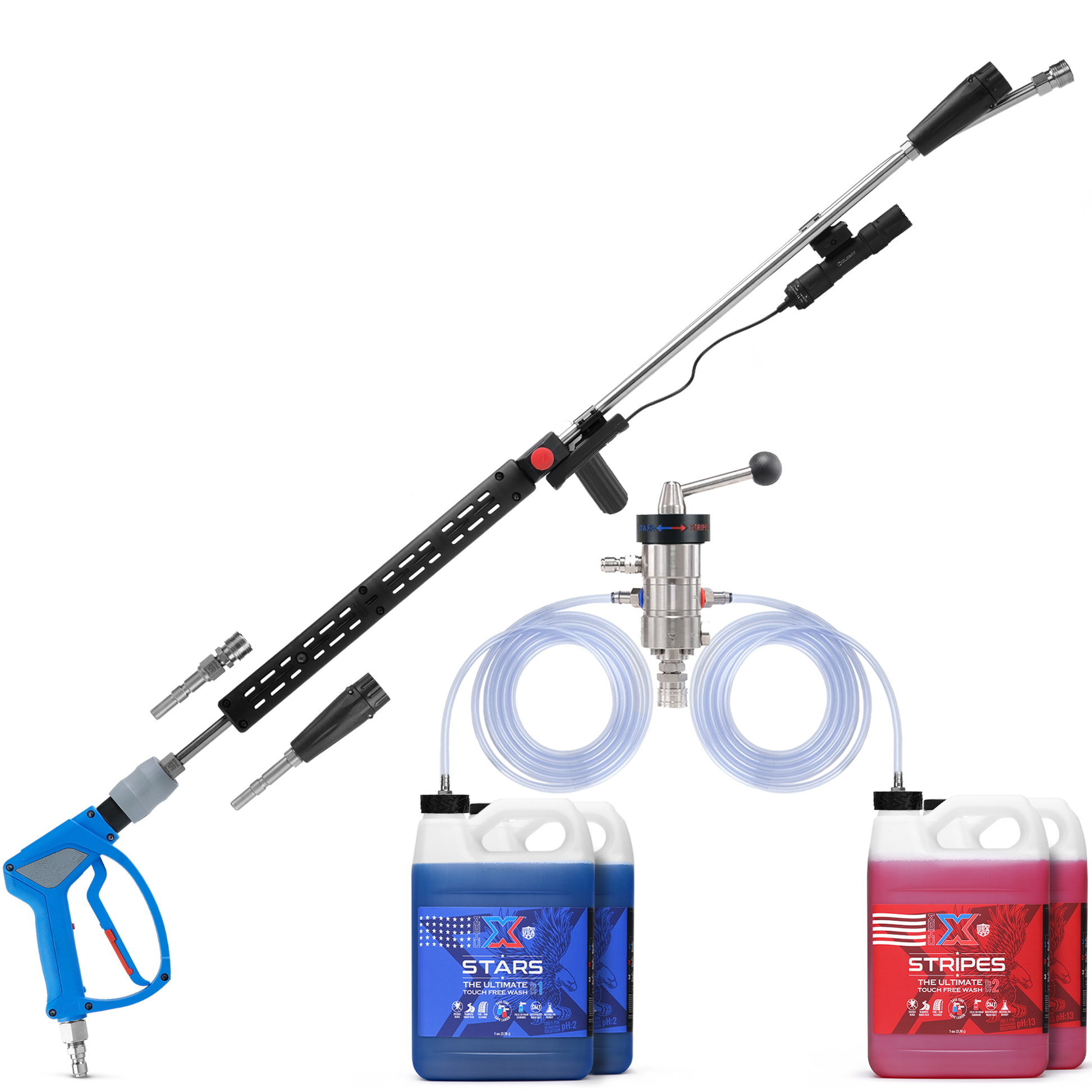

The Freedom Foamer: Mission Ready Ultimate Touch Free Vehicle Wash Kit
-
Only 1 left in stock
Sale price
$2,974.00
Regular price
$3,154.00
Sale
* Important Note: This product comes with a 0.7mm orifice pre-installed, for a 100:1 dilution ratio—ideal for winter use when stronger cleaning power is needed.For summer conditions, especially when washing polished aluminum or aiming for more efficient soap usage, we recommend switching to a 0.6mm orifice for a slightly leaner mix.
FEATURES / SPECS

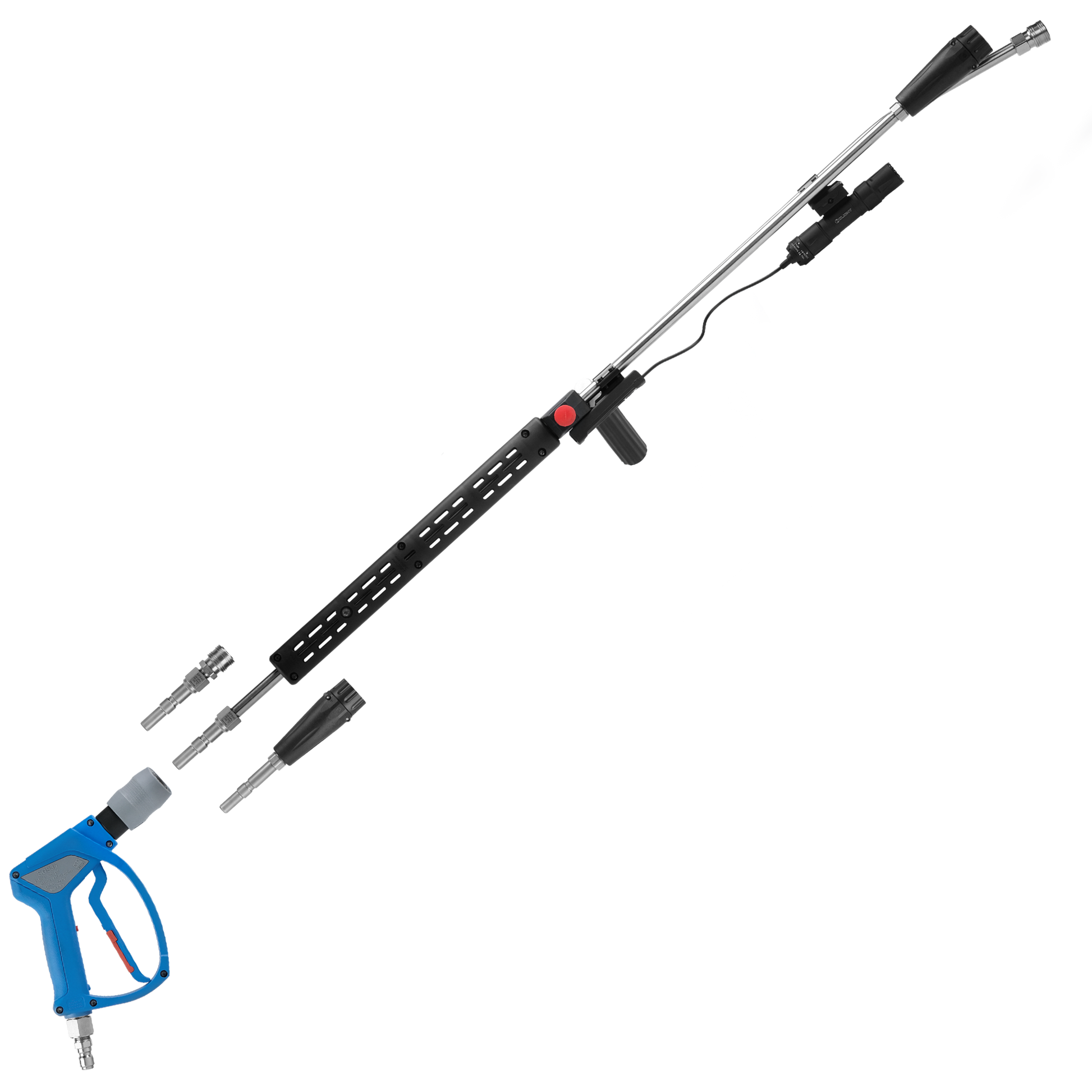

1. 44" CHEM-X FREEDOM FOAMER LANCE:
- Olight Odin 2000 Lumen Tactical Flashlight
- Stainless Steel KEW connects
- Replacement Foam Agitator Pad + O-Ring
- Veloci Prima Stainless Steel QC fittings made in the USA
- ST-75s Foamer w/ KEW inlet for one handed operation

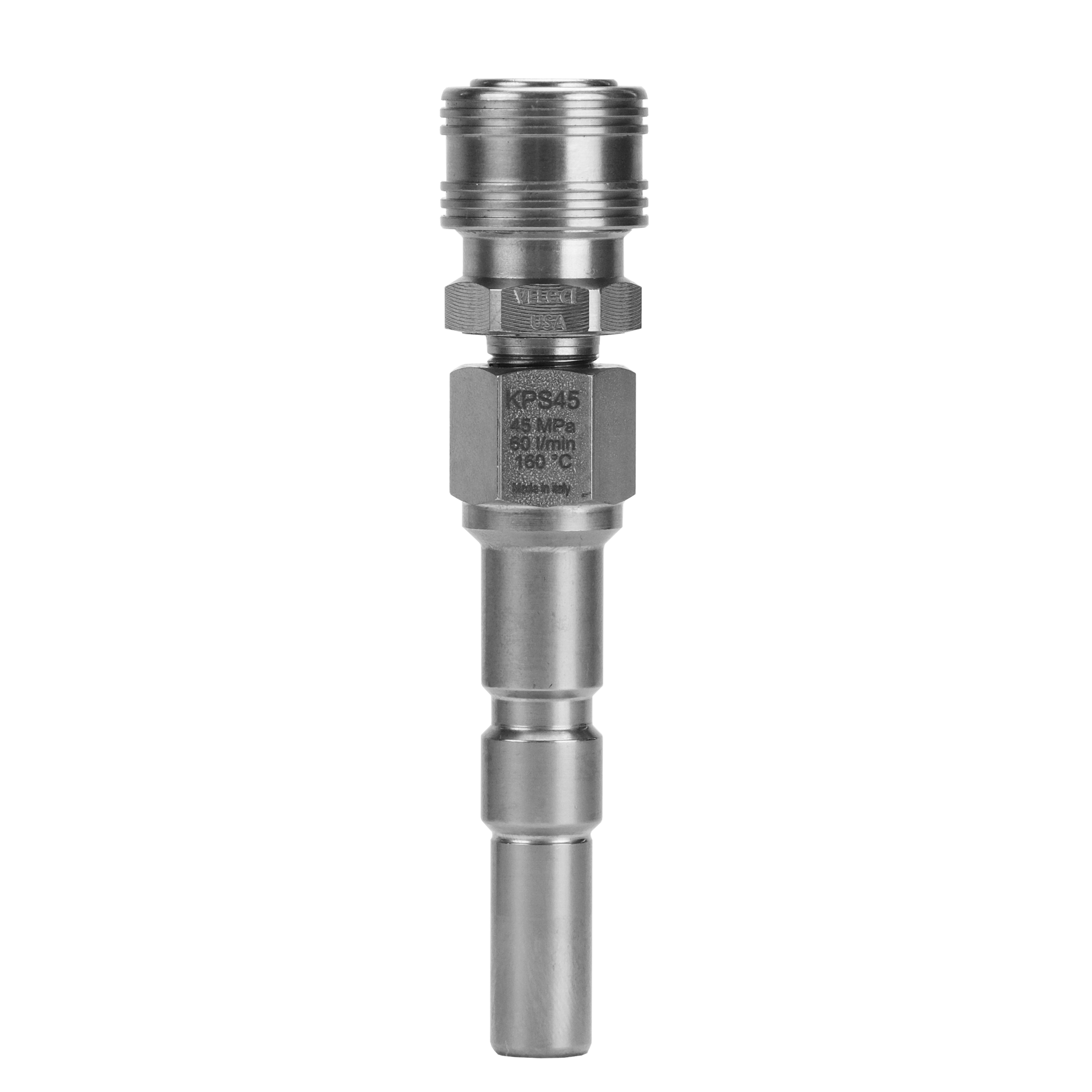

- KEW to QC Adaptor for one-handed up close rinsing
- Min/Max Flow Rate: 1-6GPM
- Min/Max PSI: 1000-40000 PSI
- Max Temp: 212° (Recommended Temp is 125°-130°)
- Adjustable Vented Grip

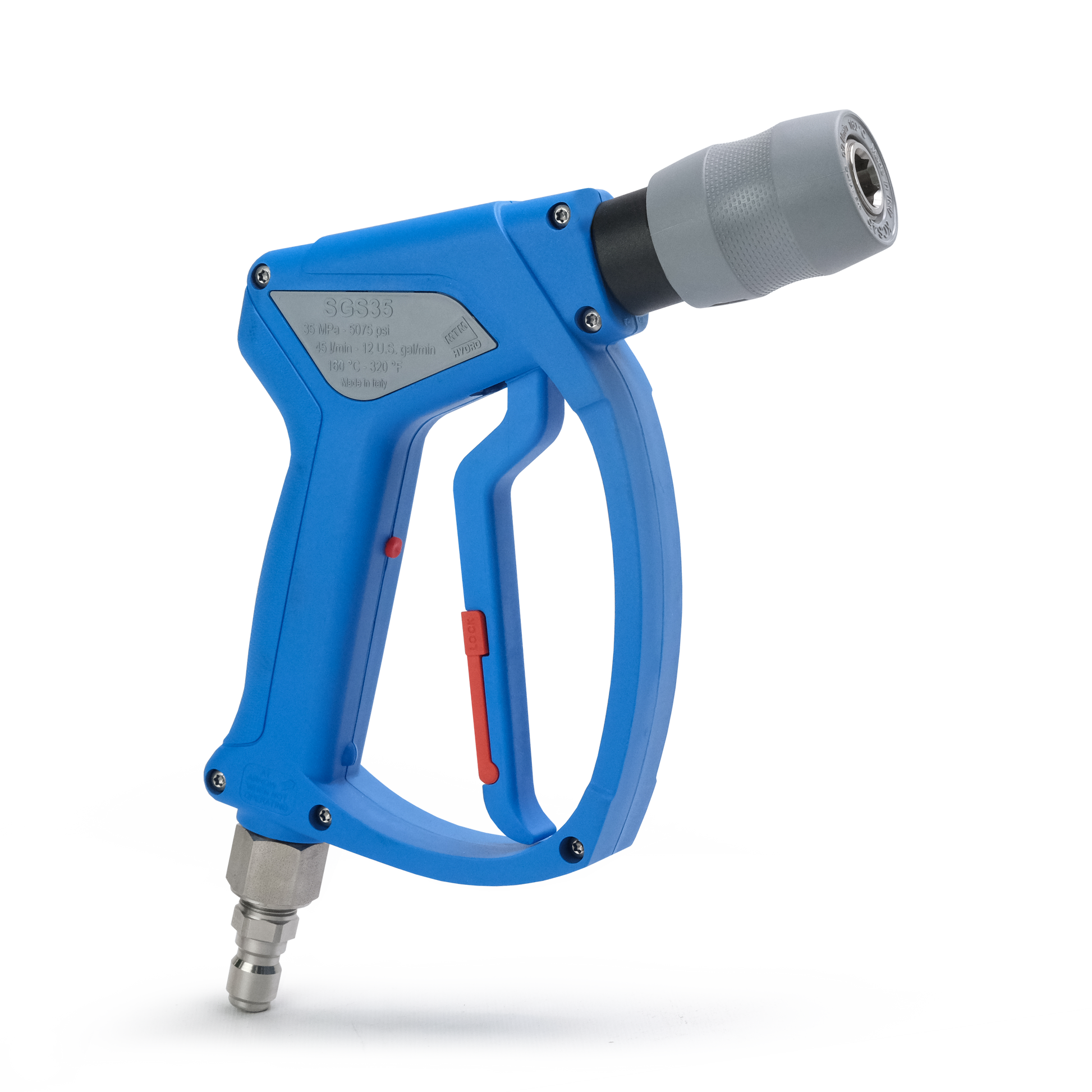

MTM HYDRO SGS35 SHUT OFF GUN:
- Easy Hold Technology for Increased Cleaning Efficiency
- Italian Manufactured
- Low Profile Stainless Steel Live Swivel
- Mas PSI: 5000 PSI
- Max Flow Rate: 12 GPM
3. SUTTNER ST-164 DUAL CHEMICAL INJECTOR:
- Max Hose Length After Injection: 150'
- Integrated Lever: Allows you to easily switch from Stars to Stripes
- Durable Stainless Steel Housing
- 18 Metering/Dosing Nozzles: Each chemical can be set at individual desired strengths (comes pre set to run 100:1)
- Min/Max Flow Rate: 1-18 GPM
- Min/Max PSI: 1000-4000 PSI
- Rated for 212° Water

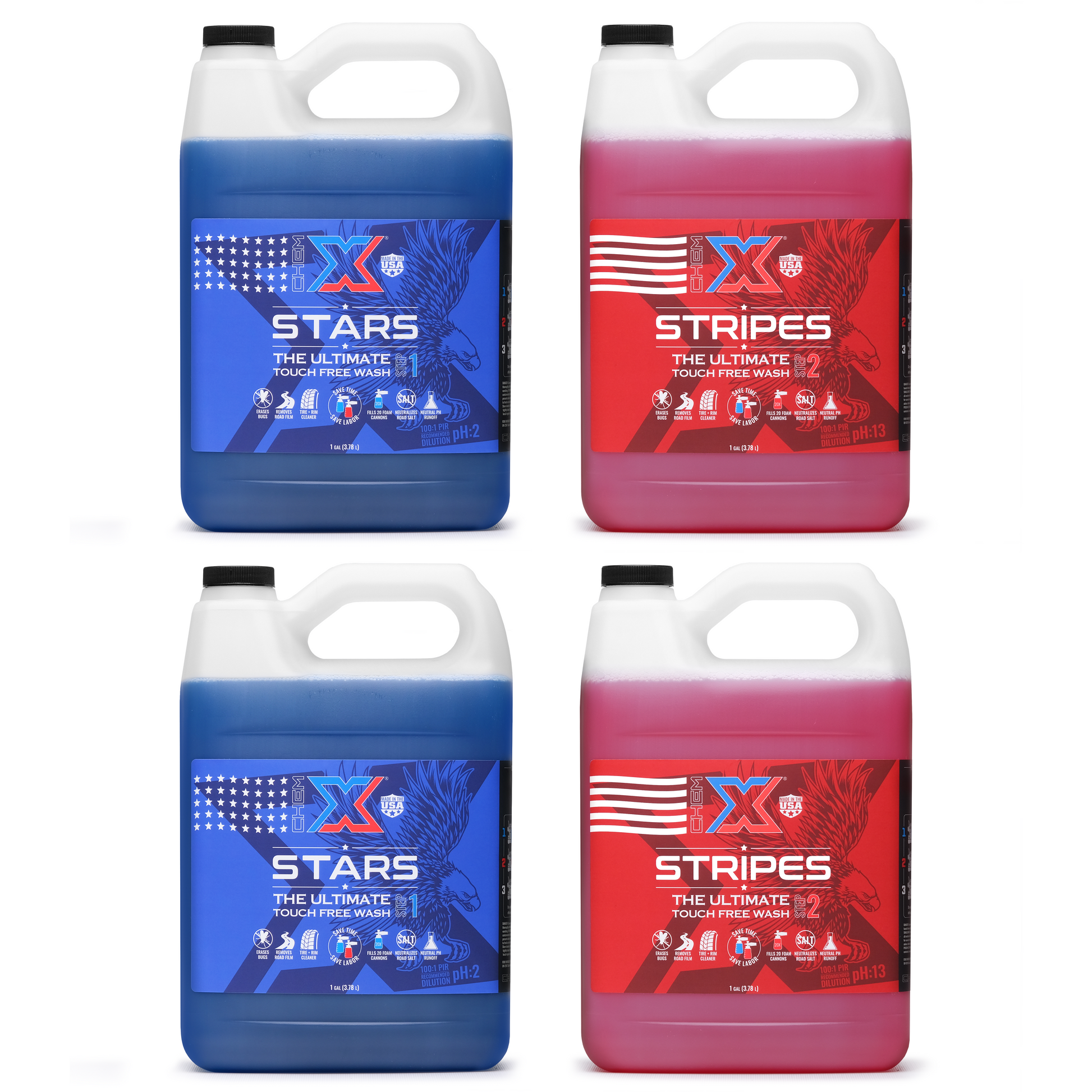

4. 2 GALLONS STARS + 2 GALLONS STRIPES

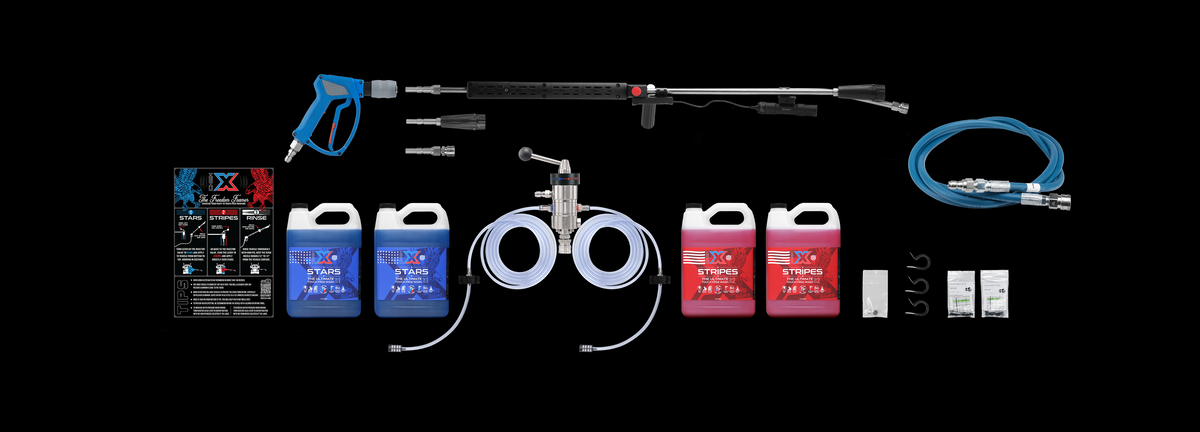

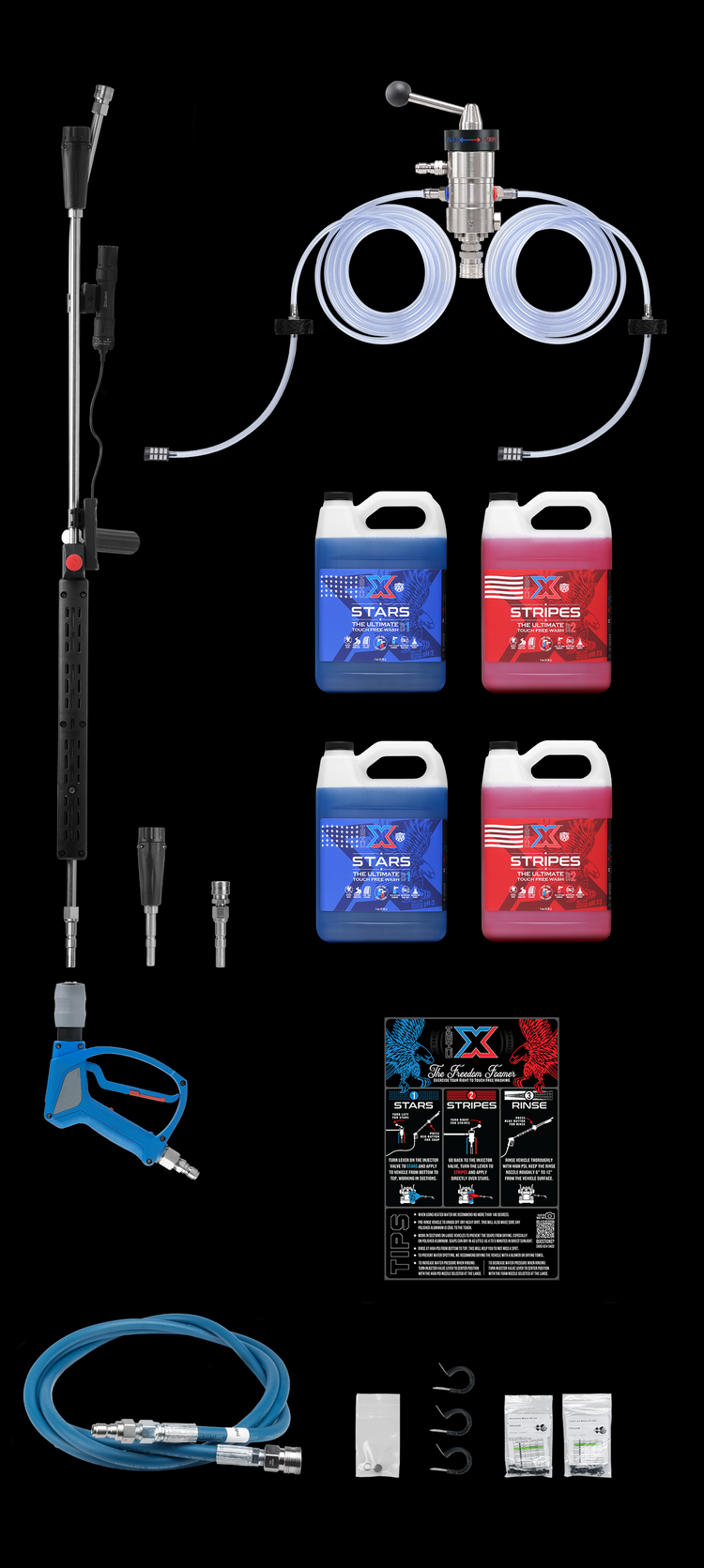

THE FREEDOM FOAMER: MISSION READY ULTIMATE TOUCH FREE VEHICLE WASH KIT
Replacement Agitator Pad
3 Rubber Cushioned Hose Clamps
18 Meter Nozzles: 2 packs
BUILT FOR THE TOUGHEST MISSIONS WITH UNPARALLELED TWO-STEP CLEANING POWER.
SAVE TIME AND LABOR + AUTOMATIC SOAP MEASURING + ELIMINATE REFILLS
This injector automatically dilutes our soaps to the optimum panel impact ratio of 100:1, so you don't have to spend time or energy measuring. This feature is particularly useful in multi-user environments where drivers wash their own vehicles at the end of the day, or for detailers who want to streamline their process and complete more work in the same amount of time. This is the easiest way to save money and time in your wash bay!
Ultimate Quality
The Chem-X Freedom Foamer was designed and hand built by Chem-X. We took the very best components and pieced them together in a layout with pure functionality and durability in mind. An almost fully stainless steel lance that is built to hold up in harsh environments. With this lance you can change between foam and rinse directly at the gun. The MTM Hydro Mezzo Shuttle Valve allows selection of either rinse or foam with the push of a button. By far the best foam lance on the market!.

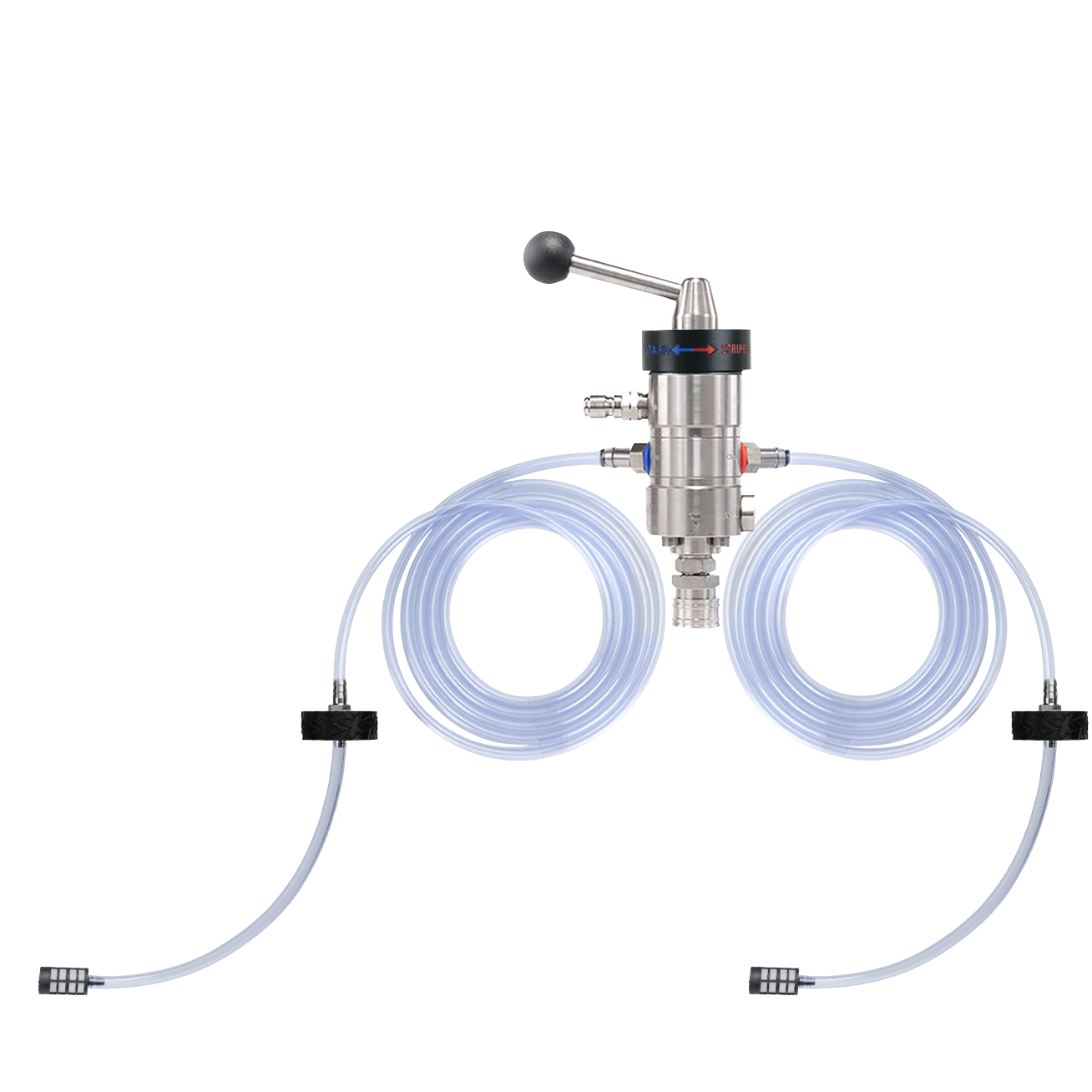

SUTTNER ST-164 DUAL FOAM INJECTOR
The most efficient and durable foam injector available, with a dilution range of 12:1 to 200:1. The easiest way to select between two chemicals and rinse. Simply switch the lever on the top of the injector to the desired position (chemical 1 or chemical 2) and let the soap fly! This injector also features a full port bypass when the lever is in the center position, which allows full output from the power washer, as well as the ability to rinse while in foaming mode. This reduces impact for gentle applications like floor mat rinsing.
Metering tips control the soap's draw rate. The dosing nozzles have a pin-sized hole through which the soap is drawn; the size of this hole determines your soap-to-water ratio. We install the 0.7 ratio tips for automatic 100 parts water to 1 part soap, or 1% strength, for when it arrives to you so the you can get to work without having to think about how the system is set. If you prefer to save costs, these injectors include a 200:1 ratio tip, which would cut soap costs in half per wash, or stronger tips if you find you need to use a more powerful solution in your situation. These nozzles offer a dilution range of 12:1 to 200:1.

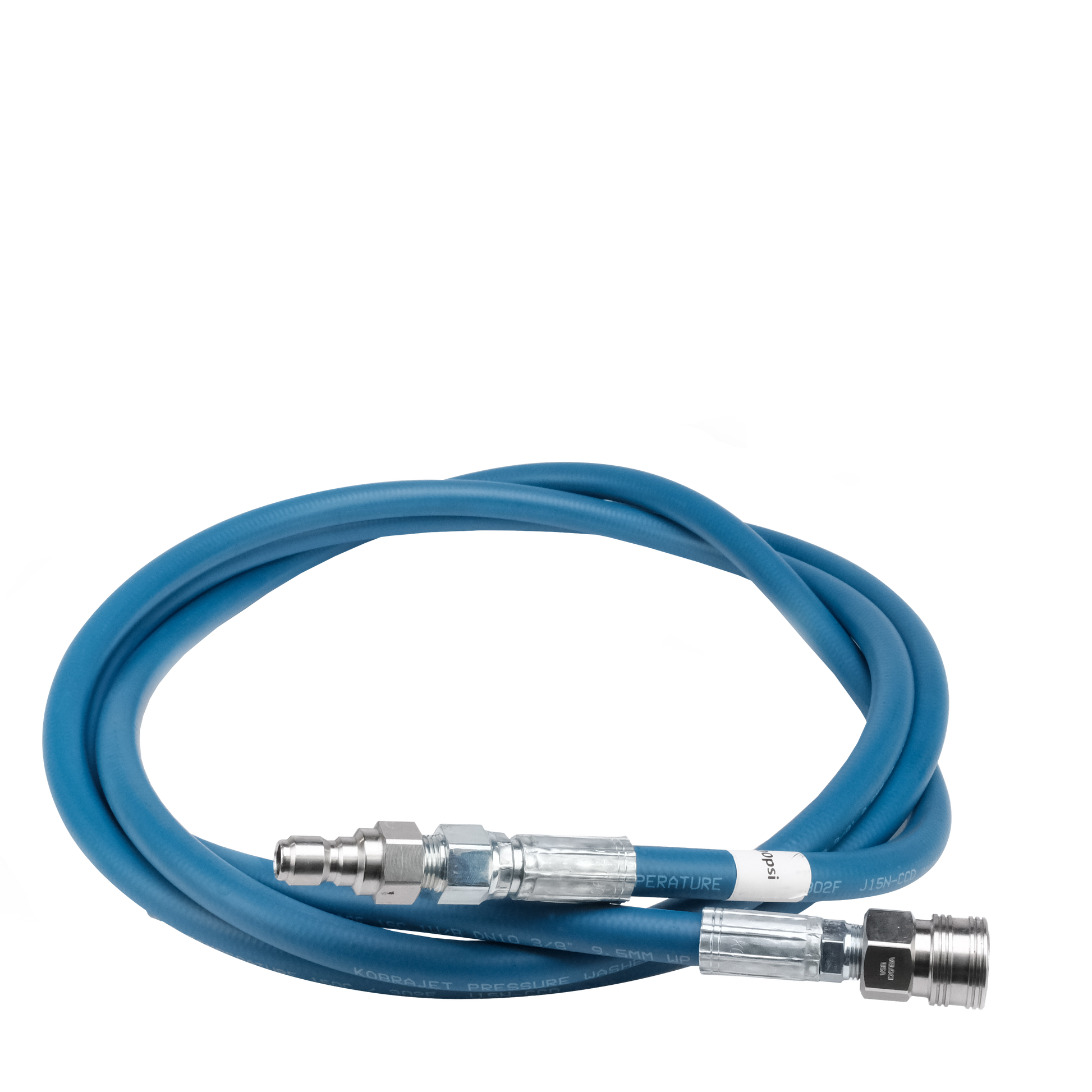

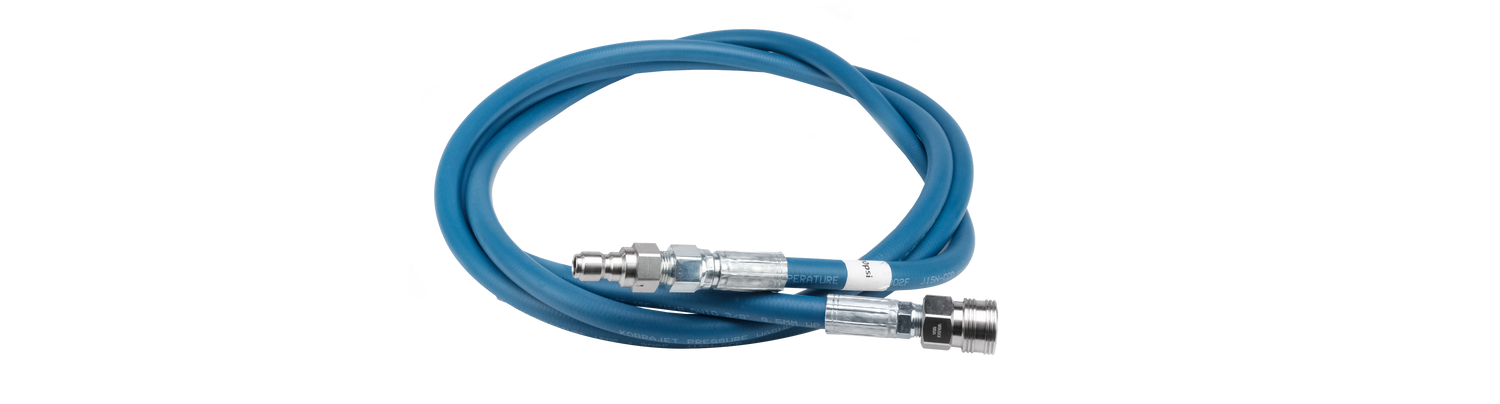

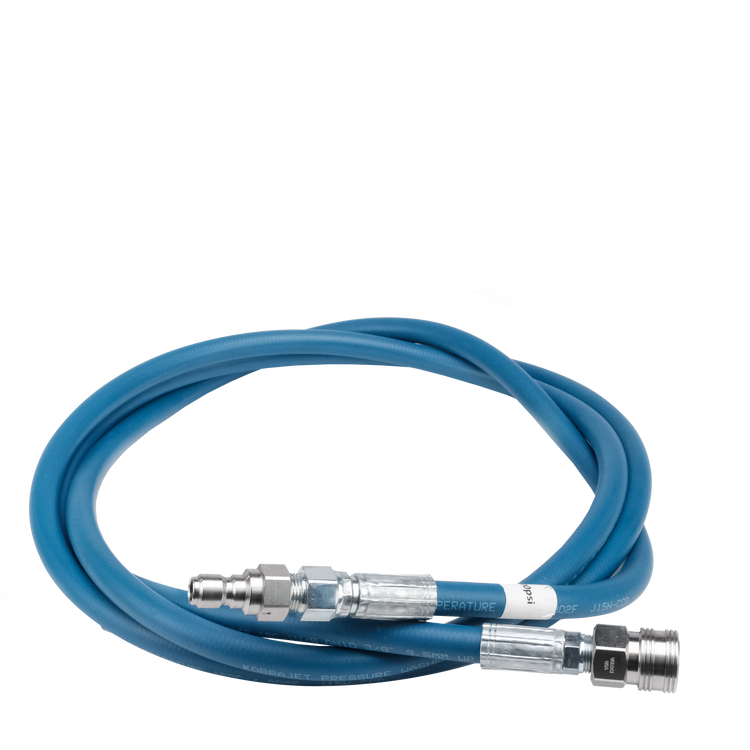

KobraJet Smooth Jumper Hose
10' Jumper Hose (Power Washer outlet to ST-164 Injector).
CHEM-X STARS + STRIPES: THE MOST AMERICAN WAY TO WASH
HOW TO INSTALL:
BLUEPRINT:

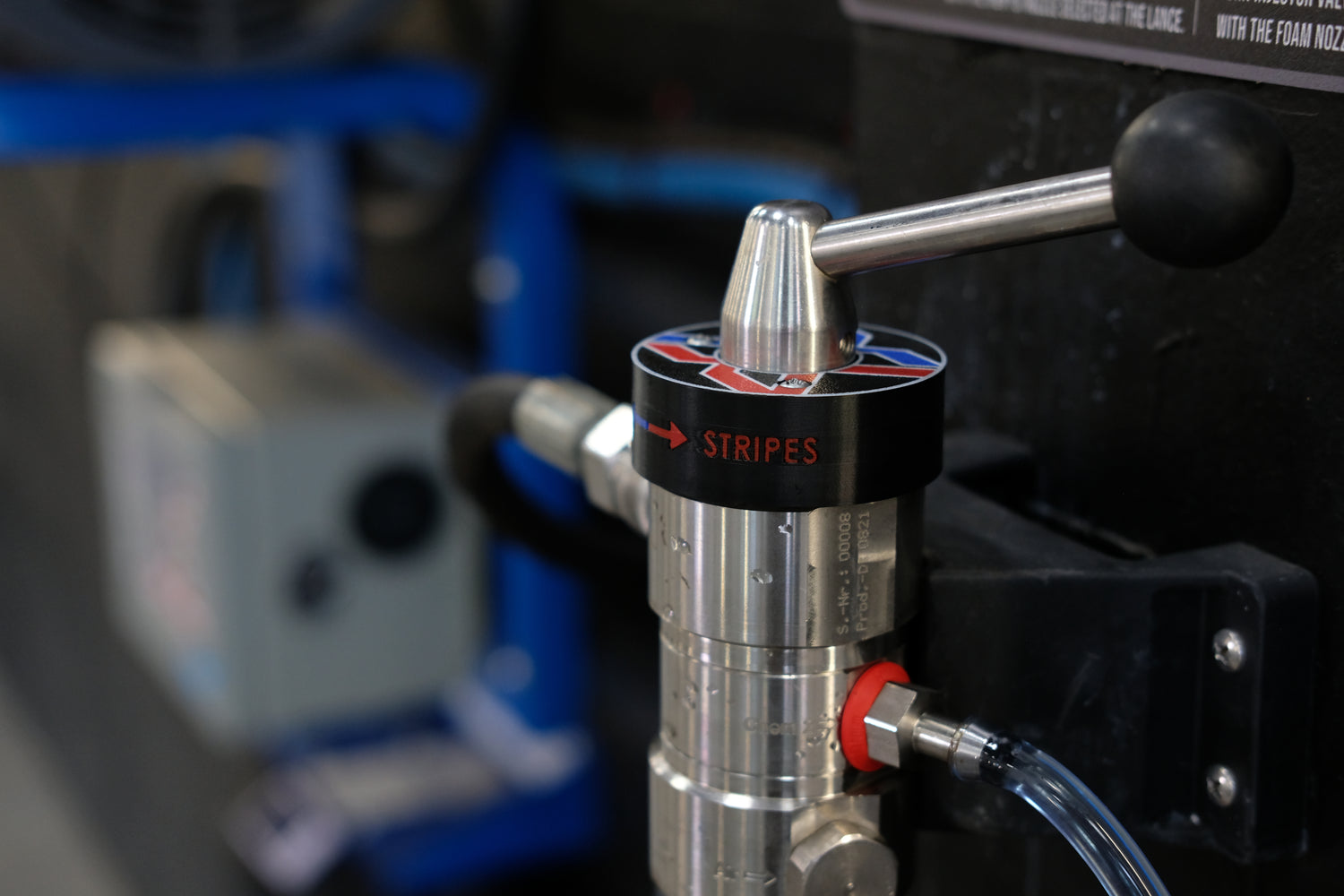

1. INSTALL ST-164 INJECTOR ONTO WALL (or MACHINE)
Mount Injector on wall/machine using the provided mounting bracket, within 10' of power washer. *If you would like the Injector further away or closer to your power washer please call Chem-X with the preferred hose length.
2. CONNECT POWER WASHER TO INJECTOR
Using the provided 10' jumper hose. Attach 3/8" quick connect plug from jumper hose to power washer outlet. Attach 3/8" quick connect coupler from jumper hose to inlet on ST-164.
3. CONNECT INJECTOR TO POWER WASHER HOSE
Plug in your existing power washer hose (or hose reel connector hose) into outlet/bottom of the ST-164.
4. CONNECT POWER WASHER HOSE TO GUN
Plug your power washer hose into the spray gun using the quick connect plug or hard pipe hose directly into Mosmatic DGV Inline Swivel.
5. INSERT PICK UP TUBES INTO SOAPS
Place the left side tube in Stars (BLUE) and right side in Stripes (RED).
