X Factor Complete Wash Bay System: Wall Mounted 220v Electric - REAL DEAL TOUCHLESS FOAMING KIT

1 review
Motor Spec

X Factor Complete Wash Bay System - Wall Mounted 220v Electric - Real Deal Touchless Foaming Kit

This is the ultimate solution to streamline both shop space and wash time! The X Factor Wall Mounted Power Washer combined with our Real Deal Touchless Foam Kit and the highest quality reel make for an incredible system that will cut set up and wash time down by as much as 90 percent.

Take your washing and detailing to the extreme!

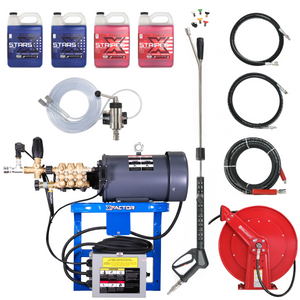

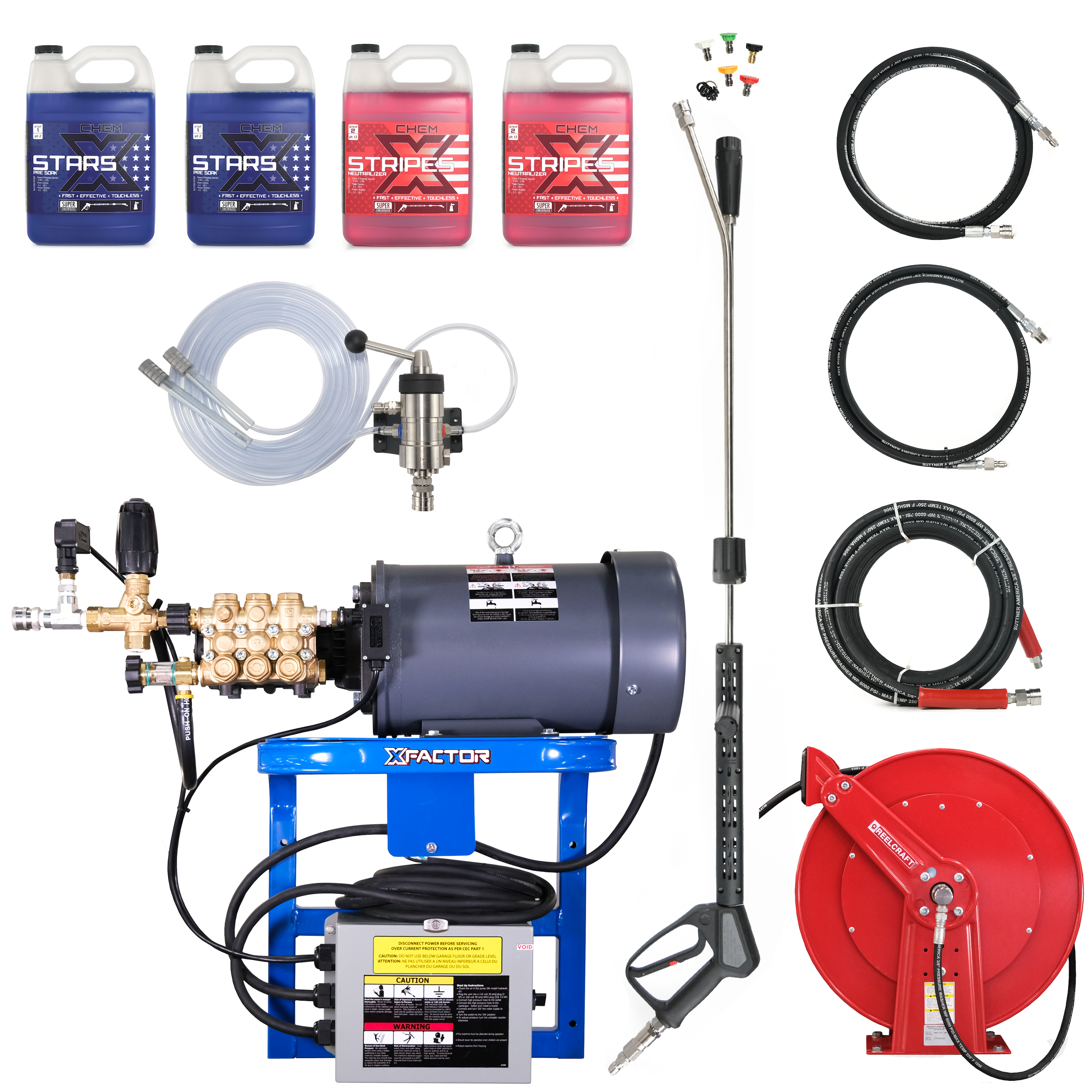

1. X Factor Wall Mounted 220v Electric Power Washer
2. 44" Chem-X Foam Lance (Built Complete)

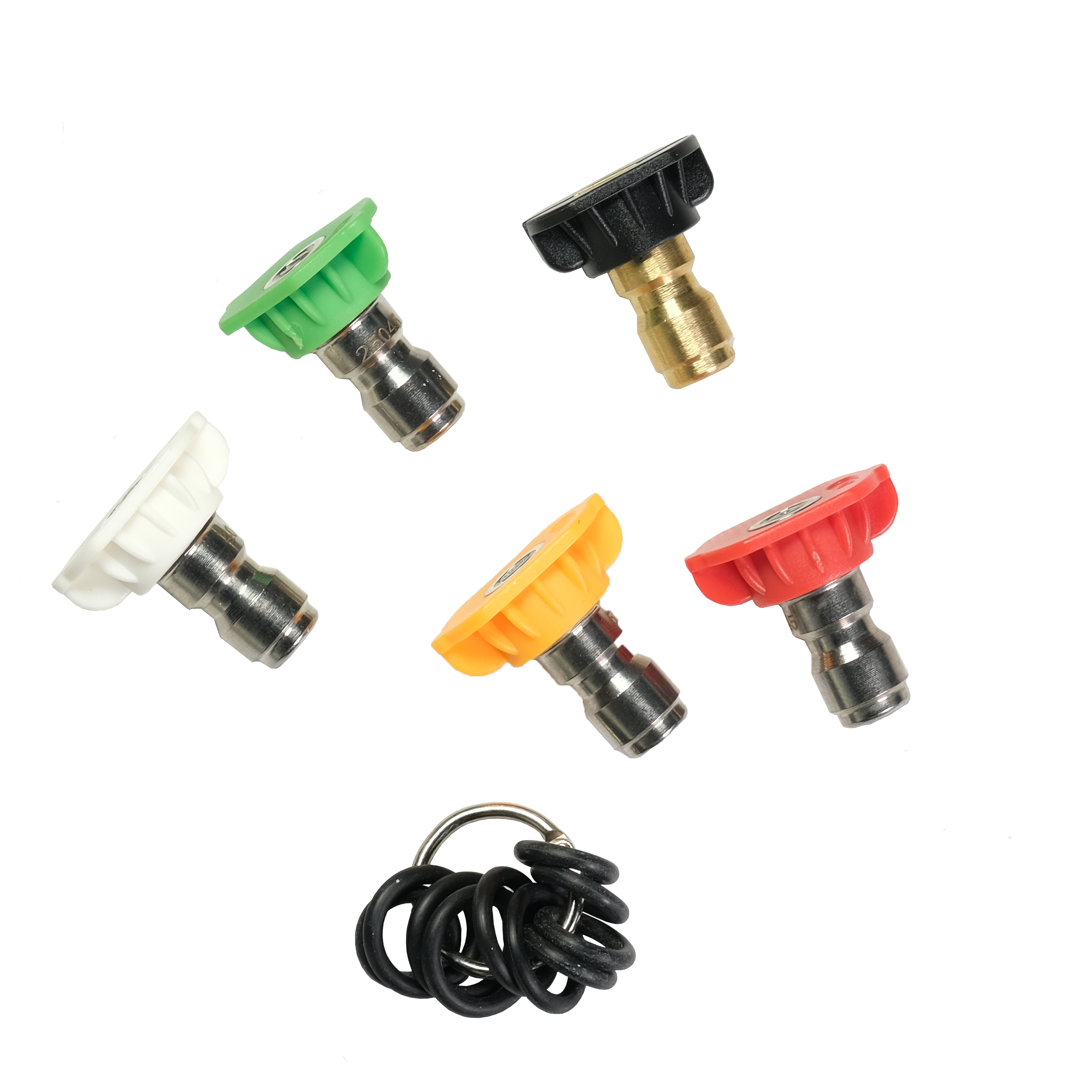

3. 0°/15°/25°/40° Nozzles
4. Reelcraft 100' Capacity Spring Retractable Reel
5. Suttner ST-164 Touchless Foam Injector
6. 100' High Pressure Hose rated for 6000psi
7. 10' Hose Reel Connector Hose (ST-164 Injector to Reelcraft Reel)
8. 10' Jumper Hose (Power Washer outlet to ST-164 Injector)

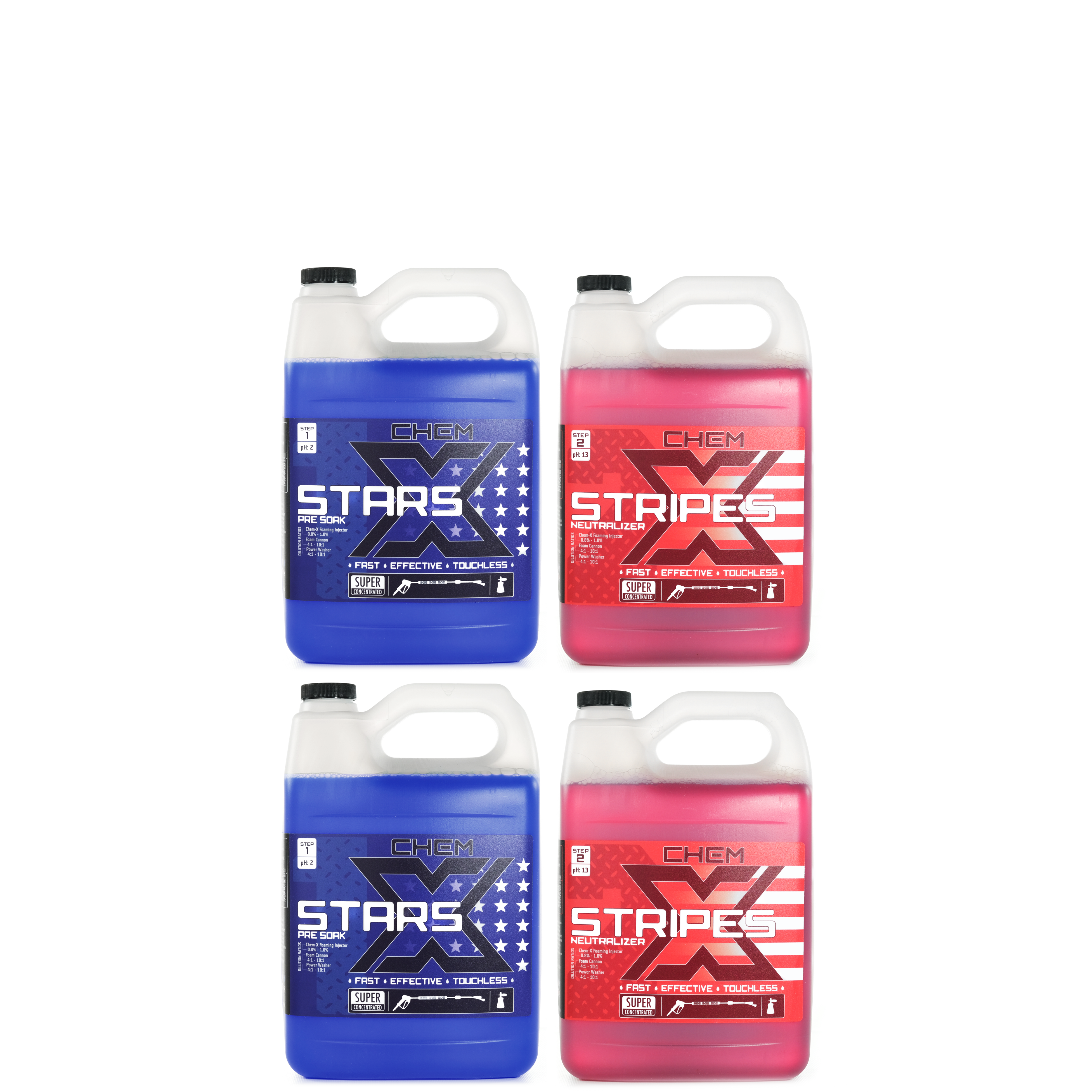

9. 2 Gallons Super Concentrated Stars
10. 2 Gallons  Super Concentrated Stripes

The X Factor

Pump + Plumbing Layout

These power washers feature a Commercial Duty Triplex Plunger Pump which is rated for an inlet water temperature of 140 degrees, along with our own unique plumbing layout designed for easy serviceability.

The VRT3 Unloader Valve (pressure actuated for foaming systems) is mounted with a 3/8 screw coupler to drastically reduce repair times, this layout also has minimal 90 degree fittings which helps to increase output PSI.

The garden hose inlet is a General Pump DuraView Filter to remove any particulates from the water line and can be visibly checked without opening.


The auto start/stop feature protects the pump from overheating while the unit is on but water is not being sprayed by automatically turning off the pump after a 15-30 second period, the dual pressure switches on the machine will sense the psi drop the next time the trigger is squeezed and turn the motor back on.

These machines also feature an hour meter to determine the best times for pump oil changes.

The TechTop Motor is totally enclosed and fan cooled with thermo protection to prevent overheating.

The Real Deal Injection Kit

Designed & hand built at Chem-X. The Real Deal Kit is the optimal way to apply our touchless wash, Stars + Stripes. Completely plug & play and compatible with almost any power washer. This kit solves the common problems found with 2-step touchless soaps & equipment. The Real Deal is made with rock solid, stainless steel components and comes with our safest and most effective touchless wash ever. It's a no brainer, this is the easiest way to save money and time in your wash bay. MORE INFO HERE

Suttner St-164 Dual Foaming Chemical Injector

The most efficient and durable foam injector available, with a dilution range from 12:1 to 200:1. The easiest way to select between two chemicals and rinse. Simply switch lever on the top of the injector to the desired position(chem 1, chem 2, rinse) and let the soap fly.

  1. Durable Stainless Steel Construction
  2. Two 10' Pickup Tubes With Weighted Filters
  3. Injector Inlet - Standard 3/8" Male QC Plug
  4. Injector Outlet - Standard 3/8" Female QC Coupling
  5. Integrated Lever
  6. Wall/Surface Mounting Plate
  7. 18 dosing Nozzles Included

Chem-X Foam Lance Built Complete

Change between rinse and foam directly at the gun. Simply release trigger and twist The Suttner ST-58 Change Over Valve to either rinse or foam. The Chem-X Foam Lance screams quality and durability. Built with as much stainless steel as possible and designed to be very easy to use. The Mosmatic High PSI Gun Inlet Swivel eliminates hose fatigue, swiveling under full PSI. By far the best foam lance on the market! MORE INFO HERE

  1. Suttner ST-75s Foaming Nozzle
  2. Suttner ST-58 Change over Valve
  3. Suttner ST-2305 Trigger
  4. Mosmatic DGV Swivel

Reelcraft Hose Reel + Ready Made Hoses

The Series 80000 spring retractable reels incorporate the most current design and manufacturing techniques to guarantee long life and trouble-free performance. All steel construction and a baked on powder coat finish combine to produce a rugged, corrosion-resistant product suitable for a wide variety of heavy duty applications.
  1. Reelcraft 100' Capacity Spring Retractable Reel
  2. 100' High Pressure Hose rated for 6000psi
  3. 10' Hose Reel Connector Hose (Power washer outlet to Reelcraft Reel)
  4. 10' Jumper Hose (Power Washer outlet to ST-164 Injector)


Installation Tips

ST-164/ST-160 Dosing Nozzle RATIO + PERCENTAGE Chart

The chart below shows dosing nozzle size (opening) and the percentage of draw when the chemical used has the same viscosity as water.



  • 3.5GPM@2400PSI (5hp model)
  • 3.5GPM@3000PSI (7.5hp model)
  • Commercial Duty Triplex Plunger Pump (Rated for water inlet temperature of 140 degrees max)
  • Oil Bath Crank Case
  • Stainless Valves
  • Brass Manifold
  • Direct Drive
  • Thermo Pump Protector

Electric Motor (5hp + 7.5hp)

  • 220 Volt
  • 1 Phase
  • 30 Amps (5hp model)
  • 50 Amps (7.5hp model)
  • 1750 RPM
  • Totally Enclosed Fan Cooled
  • Full Frame
  • 1.15 Service Factor
  • Thermal Overload Protection
  • Continuous Duty

Electrical Control Panel

  • Heavy Duty On/Off Cam Switch with Included Auto Stop/Start Time Delay Off
  • Power Cord Length 25' (Plug end not included)
  • Nema 4
  • Water Tight
  • Easy Access


  • One Piece Bent Steel Base
  • All Powder Coated
  • Wall Mount (16" on center hole pattern)

Power Washer Dimensions

  • Height: 28"
  • Width: 32"
  • Depth: 16"
  • 5hp model: 200 lbs
  • 7.5hp model: 250 lbs

Suttner ST-164 Dual Chemical Injector

  • Max Hose Length: 150'
  • Integrated lever that allows you to easily switch from Stars to Stripes
  • Durable stainless steel housing
  • 18 metering/dosing nozzles, each chemical can be set at individual desired strengths
  • Min/Max Flow Rate: 1-6gpm
  • Min/Max PSI: 1000-4000psi
  • Rated for 212 degree water

Reel Specs

  • Reinforced Steel
  • Full Flow Stress Free Swivel design
  • Long Life Drive Spring
  • Quality Finish and Corrosion Resistant
  • Floor, wall or ceiling mountable
  • 5,000 psi rated
  • 210 degrees max temperature
  • Durable, power coated construction
  • Made in the USA

Reel Dimensions

  • Length: 24"
  • Width: 10.5"
  • Height: 25.375"
  • Weight: 85 lbs


X Factors are stocked at Chem-X and ship via freight in 3-7 business days.

Once order is placed we will reach out to finalize shipping details.

    *Diamond plate aluminum not included

        X Factors are built in North America.
