X Factor Complete Wash Bay System- Wall Mounted 220v Electric- Big Easy Foaming Kit

X Factor Complete Wash Bay System is the ultimate solution to streamline both shop space and wash time! We have hand selected and assembled the top components to create an incredible wash bay system shipped to you on one pallet. Installation is as easy as possible to get you up and washing within a few hours.

The X Factor Wall Mounted Power Washer combined with our Big Easy Foam Kit is ideal for washing with one soap such as our Liquid-X (included) Heavy Duty or Foam. To get a 100% perfect finish brush or mitt wash is recommended. Take your washing and detailing to the extreme!



1. X Factor Wall Mounted 220v Electric Power Washer
2. 44" Chem-X Foam Lance (Built Complete)
3. 0°/15°/25°/40° Nozzles
4. Suttner ST-160 Foam Injector

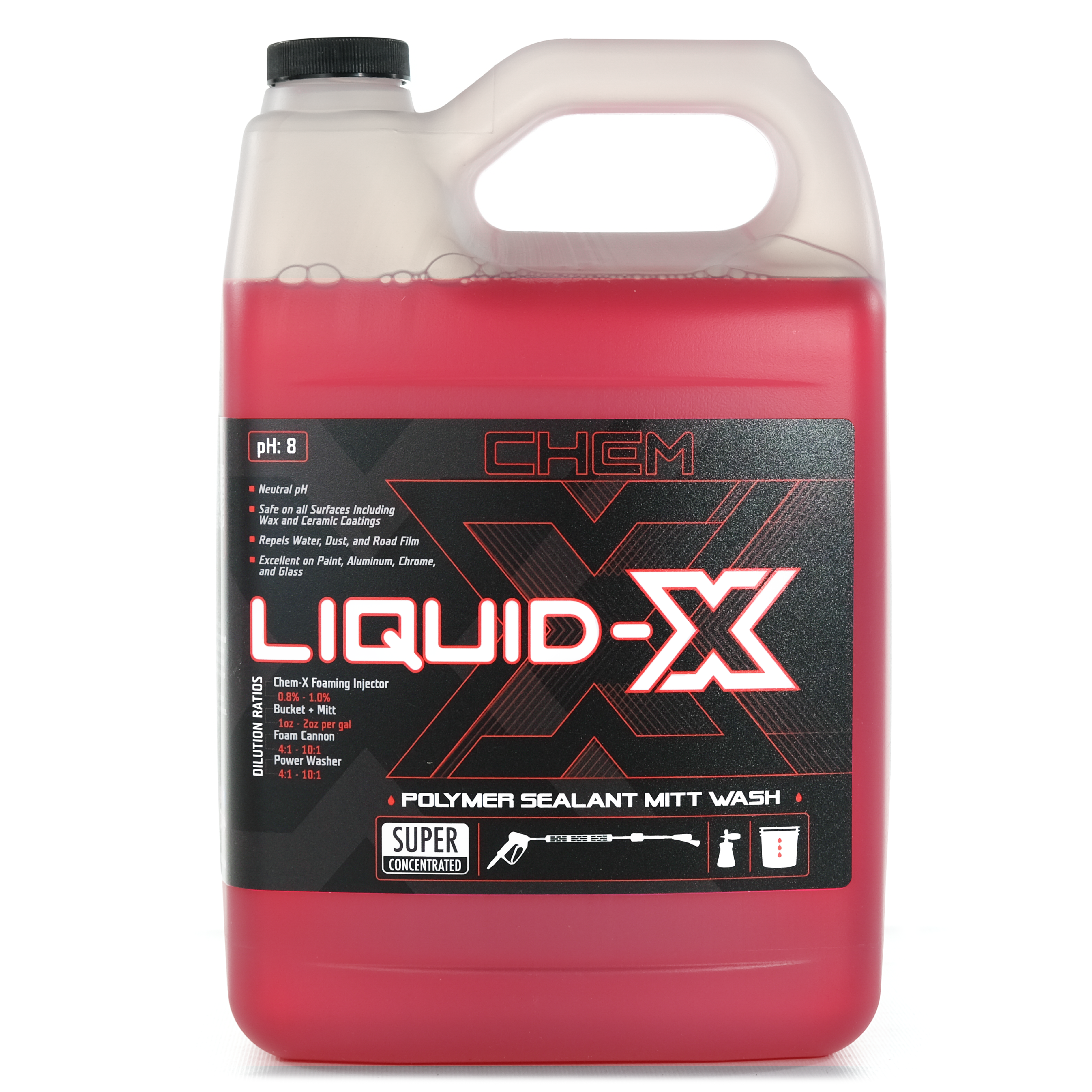

5. 1 Gallon Super Concentrated Liquid-X
6. Reelcraft 100' Capacity Spring Retractable Reel
7. 10' Hose Reel Connector Hose (Power washer outlet to Reelcraft Reel)
8. 100' High Pressure Hose rated for 6000psi

The X Factor

Pump + Plumbing Layout

These power washers feature a Commercial Duty Triplex Plunger Pump which is rated for an inlet water temperature of 140 degrees, along with our own unique plumbing layout designed for easy serviceability.

The VRT3 Unloader Valve (pressure actuated for foaming systems) is mounted with a 3/8 screw coupler to drastically reduce repair times, this layout also has minimal 90 degree fittings which helps to increase output PSI.

The garden hose inlet is a General Pump DuraView Filter to remove any particulates from the water line and can be visibly checked without opening.


The auto start/stop feature protects the pump from overheating while the unit is on but water is not being sprayed by automatically turning off the pump after a 15-30 second period, the dual pressure switches on the machine will sense the psi drop the next time the trigger is squeezed and turn the motor back on.
These machines also feature an hour meter to determine the best times for pump oil changes.
The TechTop Motor is totally enclosed and fan cooled with thermo protection to prevent overheating.

The Big Easy Injection Kit

Designed & hand built at Chem-X. The Big Easy Kit is made with rock solid, stainless steel components. This kit is the optimal way to apply our foaming soaps and degreasers. This kit comes with our Liquid-X mitt wash and is compatible with Heavy Duty, Foam & M-Shine.

Suttner St-160 Foaming Chemical Injector

The most efficient and durable foam injector available, with a dilution range from 12:1 to 200:1. The easiest way to select your foaming soap and rinse. Simply pull the trigger on your lance and let the soap fly.

Chem-X Foam Lance Built Complete

Change between rinse and foam directly at the gun. Simply release trigger and twist The Suttner ST-58 Change Over Valve to either rinse or foam. The Chem-X Foam Lance screams quality and durability. Built with as much stainless steel as possible and designed to be very easy to use. The Mosmatic High PSI Gun Inlet Swivel eliminates hose fatigue, swiveling under full PSI. By far the best foam lance on the market! MORE INFO HERE

  1. Suttner ST-75s Foaming Nozzle
  2. Suttner ST-58 Change over Valve
  3. Suttner ST-2305 Trigger
  4. Mosmatic DGV Swivel

Reelcraft Hose Reel + Ready Made Hoses

The Series 80000 spring retractable reels incorporate the most current design and manufacturing techniques to guarantee long life and trouble-free performance. All steel construction and a baked on powder coat finish combine to produce a rugged, corrosion-resistant product suitable for a wide variety of heavy duty applications.

  1. 100' High Pressure Hose rated for 6000psi
  2. 10' Hose Reel Connector Hose (Power washer outlet to Reelcraft Reel)

Installation Tips



The chart below shows dosing nozzle size (opening) and the percentage of draw when the chemical used has the same viscosity as water.



  • 3.5GPM@2400PSI (5hp model)
  • 3.5GPM@3000PSI (7.5hp model)
  • Commercial Duty Triplex Plunger Pump (Rated for water inlet temperature of 140 degrees max)
  • Oil Bath Crank Case
  • Stainless Valves
  • Brass Manifold
  • Direct Drive
  • Thermo Pump Protector

Electric Motor (5hp + 7.5hp)

  • 220 Volt
  • 1 Phase
  • 30 Amps (5hp model)
  • 50 Amps (7.5hp model)
  • 1750 RPM
  • Totally Enclosed Fan Cooled
  • Full Frame
  • 1.15 Service Factor
  • Thermal Overload Protection
  • Continuous Duty

    Electrical Control Panel

    • Heavy Duty On/Off Cam Switch with Included Auto Stop/Start Time Delay Off
    • Power Cord Length 25' (Plug end not included)
    • Nema 4
    • Water Tight
    • Easy Access


    • One Piece Bent Steel Base
    • All Powder Coated
    • Wall Mount (16" on center hole pattern)

    Power Washer Dimensions

    • Height: 28"
    • Width: 32"
    • Depth: 16"
    • 5hp model: 200 lbs
    • 7.5hp model: 250 lbs

    Reel Specs

    • Reinforced Steel
    • Full Flow Stress Free Swivel design
    • Long Life Drive Spring
    • Quality Finish and Corrosion Resistant
    • Floor, wall or ceiling mountable
    • 5,000 psi rated
    • 210 degrees max temperature
    • Durable, power coated construction
    • Made in the USA

    Reel Dimensions

    • Length: 24"
    • Width: 10.5"
    • Height: 25.375"
    • Weight: 85 lbs



    X Factors are stocked at Chem-X and ship via freight in 3-7 business days.

    Once order is placed we will reach out to finalize shipping details.

      *Diamond plate aluminum not included

          X Factors are built in North America.
