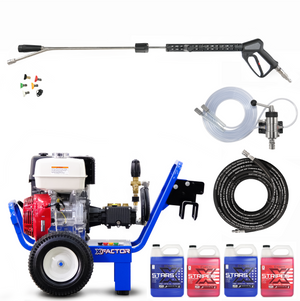

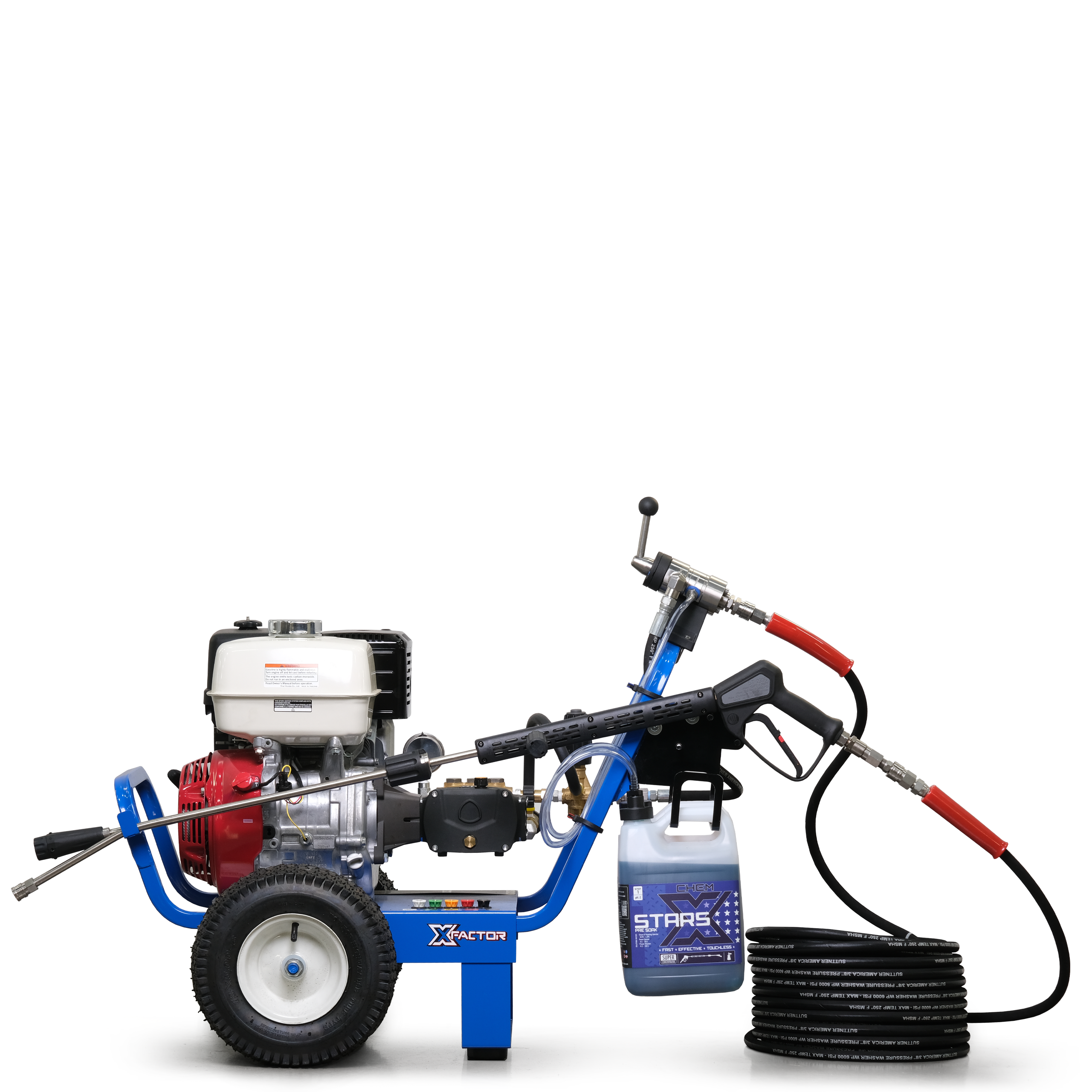

X Factor Portable Gas Power Washer: Real Deal Touchless Foaming Kit

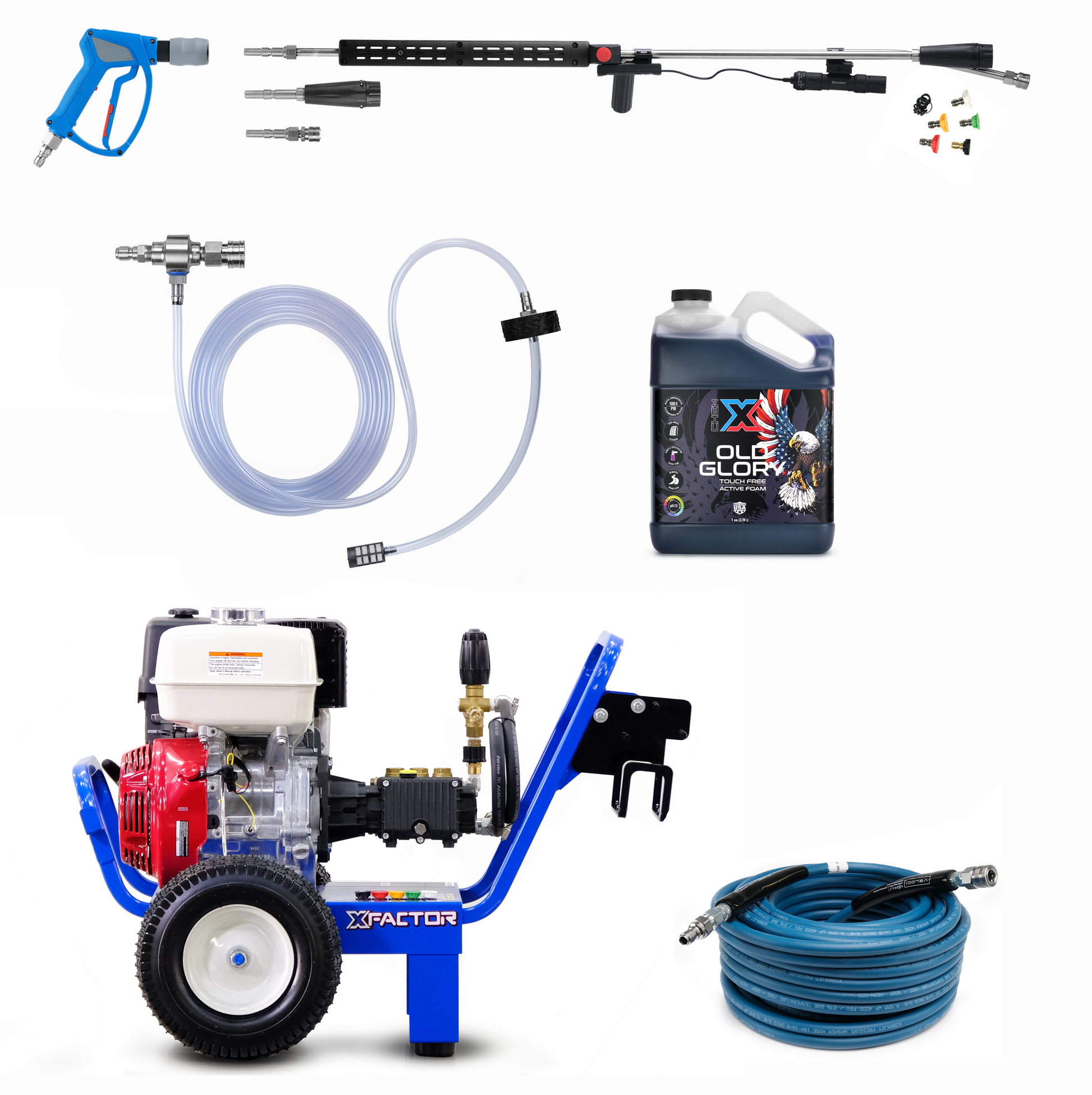

INCLUDES

THE X FACTOR

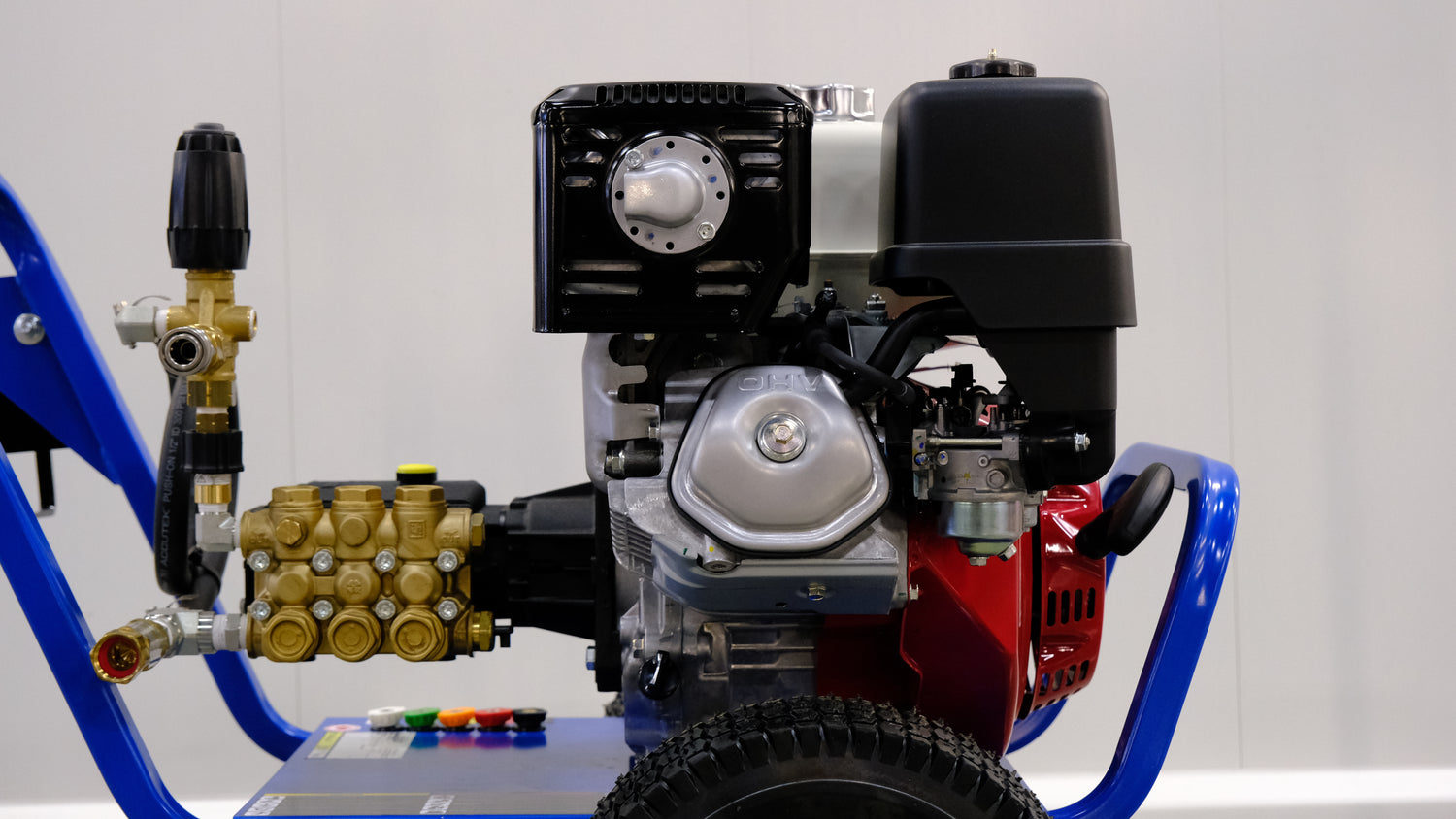

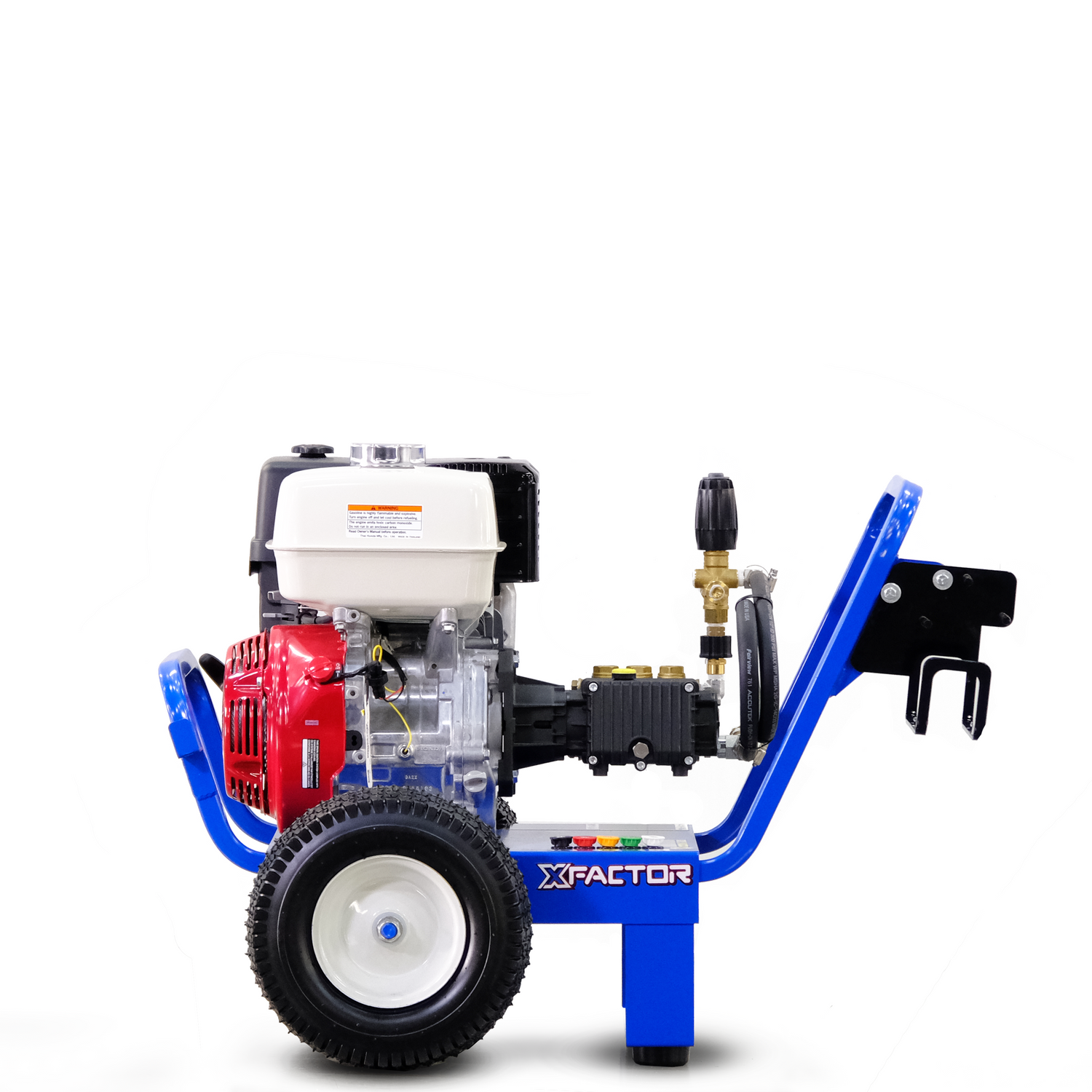

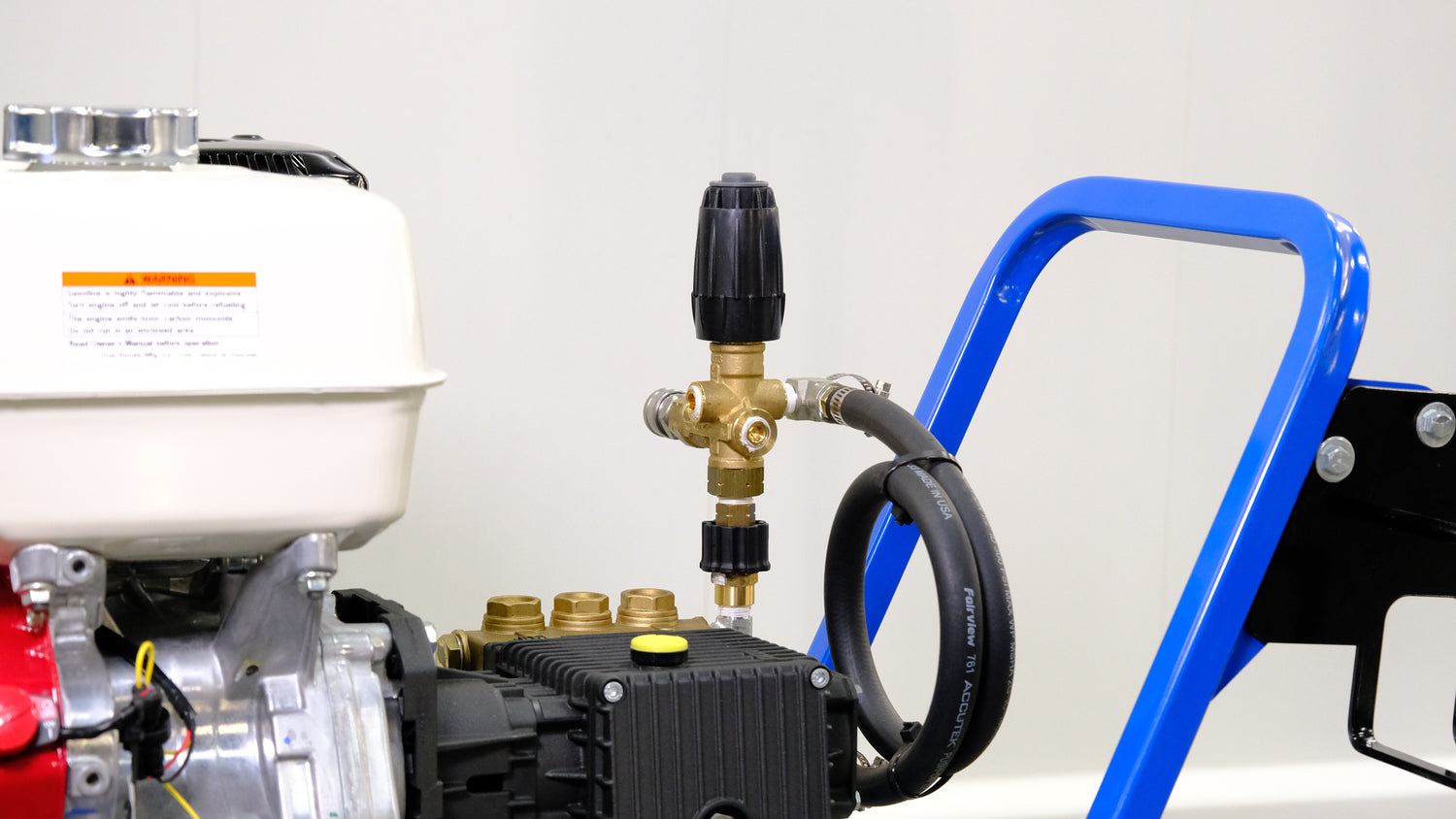

Pump + Plumbing Layout

These power washers feature a Commercial Duty Triplex Plunger Pump which is rated for an inlet water temperature of 140 degrees, along with our own unique plumbing layout designed for easy serviceability.

The VRT3 Unloader Valve (pressure actuated for foaming systems) is mounted with a 3/8 screw coupler to drastically reduce repair times, this layout also has minimal 90 degree fittings which helps to increase output PSI.

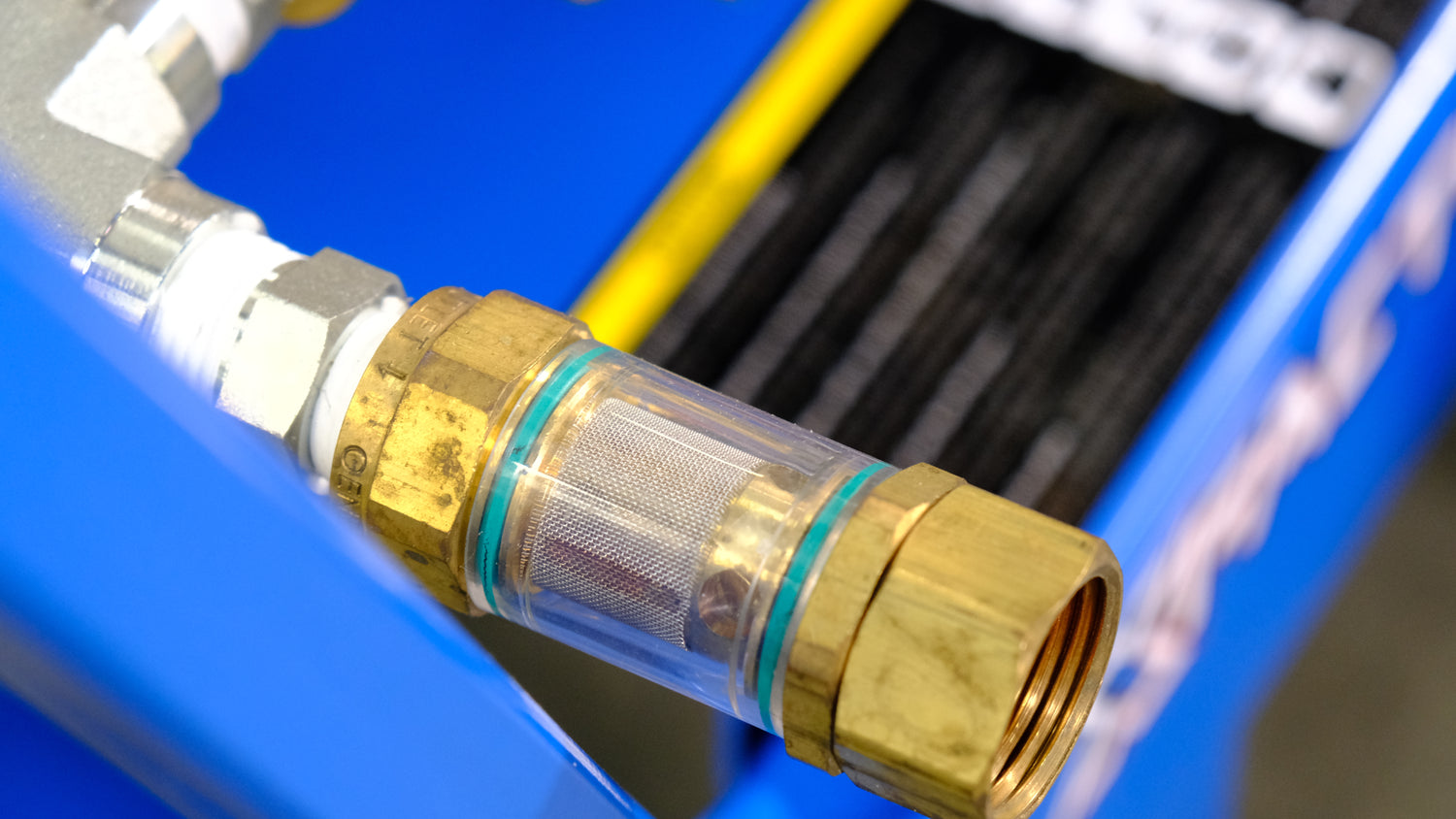

The garden hose inlet is a General Pump DuraView Filter to remove any particulates from the water line and can be visibly checked without opening.

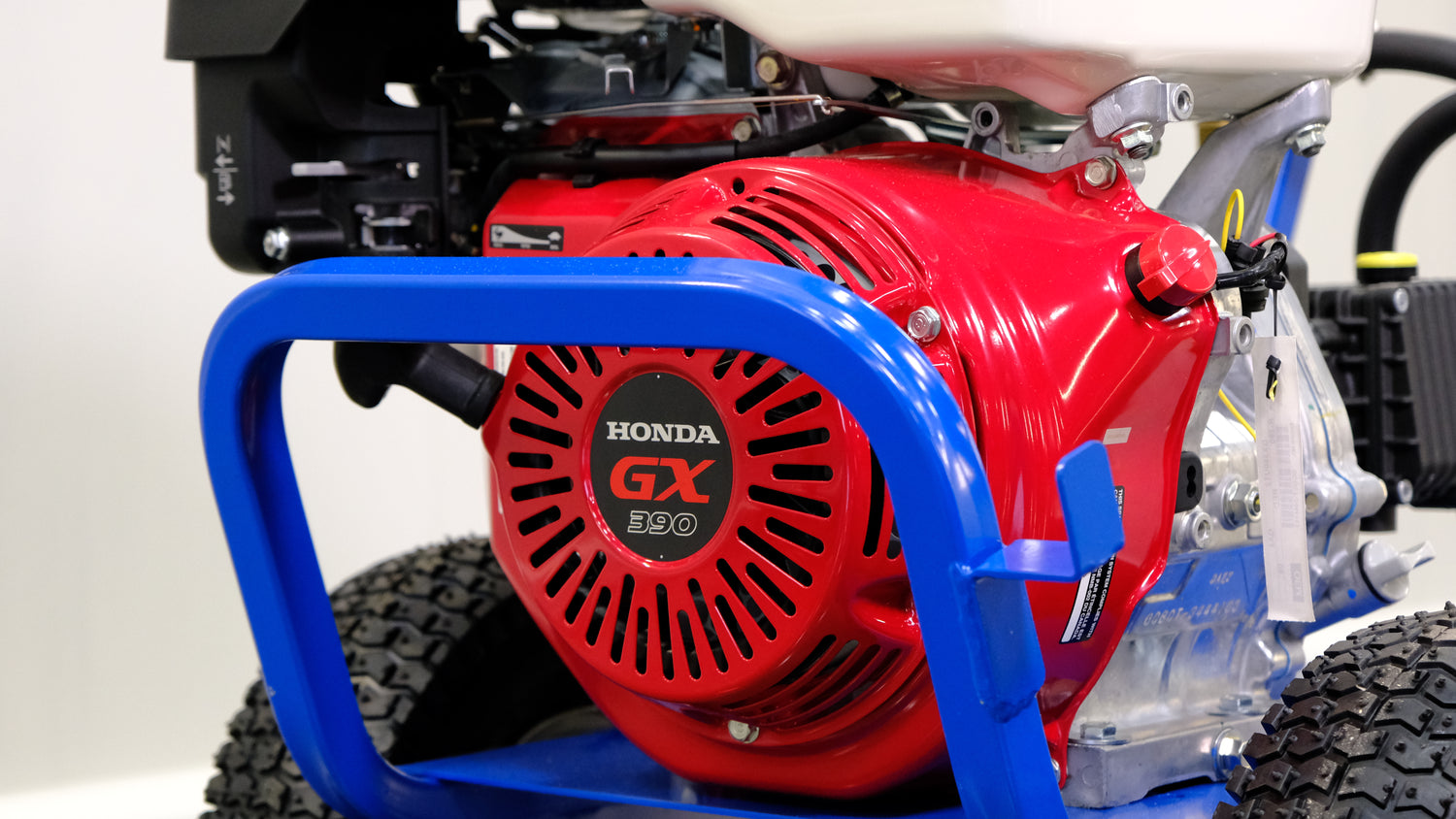

Engine

With the GX390, you’re looking at one of the best engines in the business. Powerful, Reliable, Durable, and Quiet. Honda’s GX Series is power you can trust, and then some.

THE REAL DEAL INJECTION KIT

Designed & hand built at Chem-X. The Real Deal Kit is the optimal way to apply our touchless wash, Stars + Stripes. Completely plug & play and compatible with almost any power washer. This kit solves the common problems found with 2-step touchless soaps & equipment. The Real Deal is made with rock solid, stainless steel components and comes with our safest and most effective touchless wash ever. It's a no brainer, this is the easiest way to save money and time in your wash bay. MORE INFO HERE

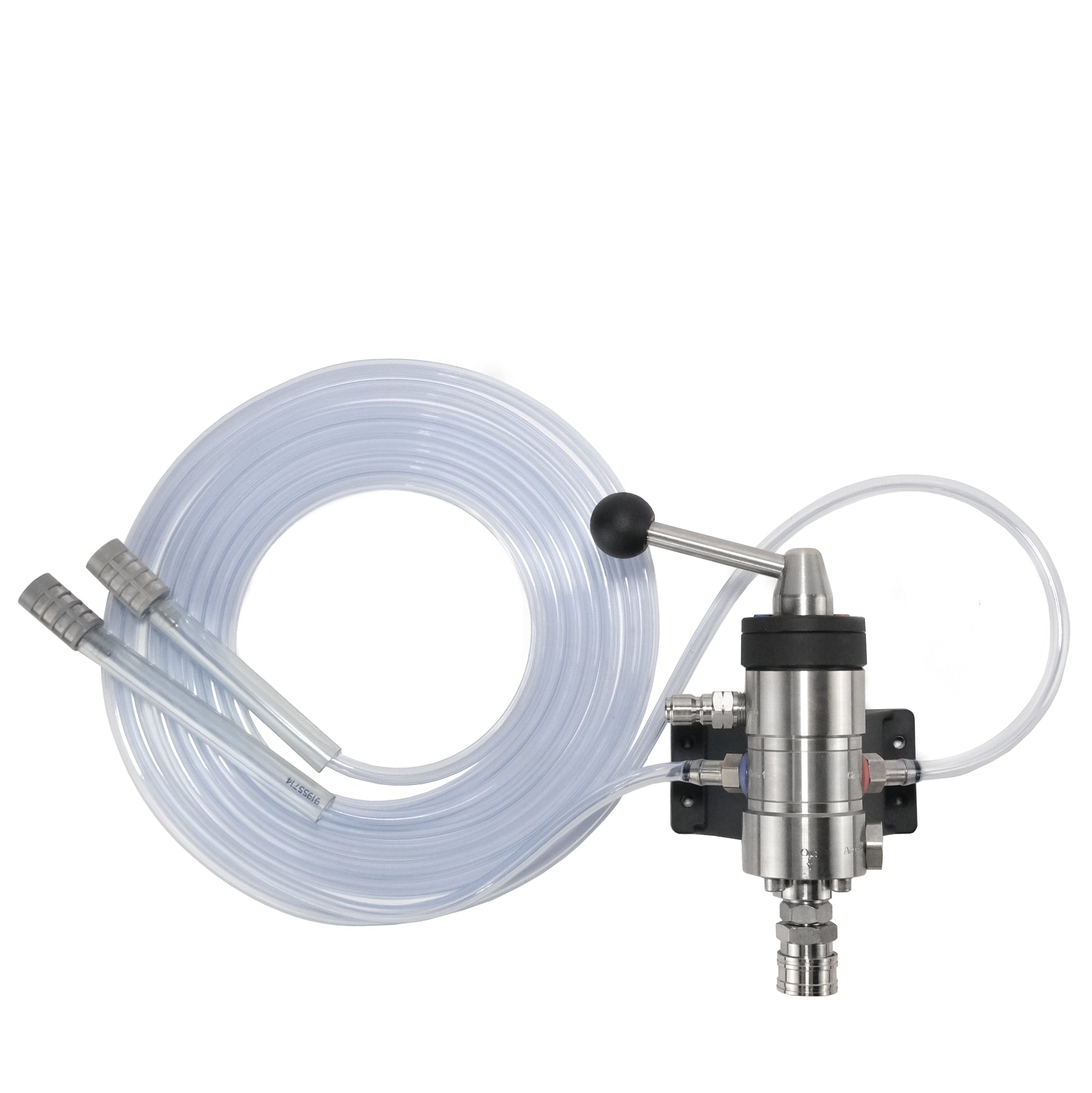

SUTTNER ST-164 DUAL FOAMING CHEMICAL INJECTOR

The most efficient and durable foam injector available, with a dilution range from 12:1 to 200:1. The easiest way to select between two chemicals and rinse. Simply switch lever on the top of the injector to the desired position(chem 1, chem 2, rinse) and let the soap fly.

1. Durable Stainless Steel Construction
2. Two 10' Pickup Tubes With Weighted Filters
3. Injector Inlet - Standard 3/8" Male QC Plug
4. Injector Outlet - Standard 3/8" Female QC Coupling
5. Integrated Lever
6. Wall/Surface Mounting Plate
7. 18 dosing Nozzles Included

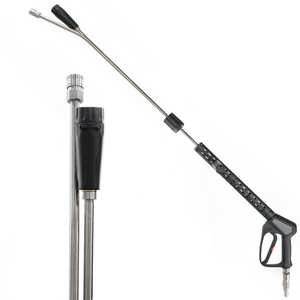

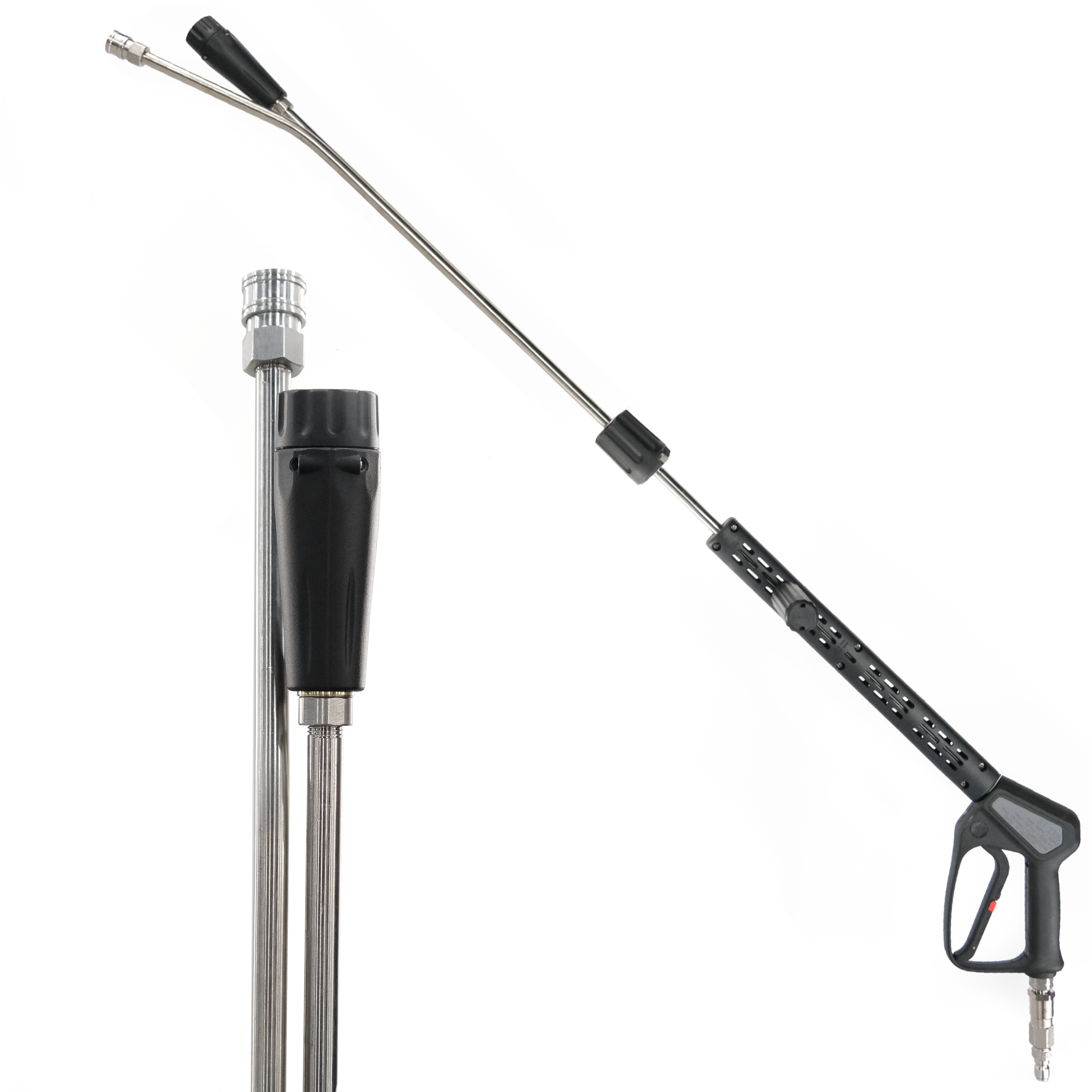

CHEM-X FOAM LANCE BUILT COMPLETE

Change between rinse and foam directly at the gun. Simply release trigger and twist The Suttner ST-58 Change Over Valve to either rinse or foam. The Chem-X Foam Lance screams quality and durability. Built with as much stainless steel as possible and designed to be very easy to use. The Mosmatic High PSI Gun Inlet Swivel eliminates hose fatigue, swiveling under full PSI. By far the best foam lance on the market! MORE INFO HERE

1. Suttner ST-75s Foaming Nozzle
2. Suttner ST-58 Change over Valve
3. Suttner ST-2305 Trigger
4. Mosmatic DGV Swivel

ST-164/ST-160 DOSING NOZZLE RATIO + PERCENTAGE CHART

The chart below shows dosing nozzle size (opening) and the percentage of draw when the chemical used has the same viscosity as water.

Specs

• Commercial Duty Triplex Plunger General Pump
• Honda GX390 Engine
• Powder Coated Wall Mount Frame

Pump

• 4.0GPM@4000PSI
• Commercial Duty Triplex Plunger Pump  (Rated for water inlet temperature of 140 degrees max)
• Oil Bath Crank Case
• Stainless Valves
• Brass Manifold
• Direct Drive
• Thermo Pump Protector

• Honda GX390
• Air-Cooled 4-Stroke OHV
• 11.7 hp (8.7 kW) @ 3,600 rpm
• Digital CDI w/Variable Timing Ignition System
• Recoil Starting System
• Fuel Tank = 6.4 U.S. qts (6.1 liters)
• Dry weight = 69lbs

Frame

• One piece Bent Steel Base
• All Powder Coated
• Portable Design
• 3/4" Threaded Axles
• (2)13″ Foam Filled Tires Attached with Lock Nuts

*Shipping

X Factors are stocked at Chem-X and ship via freight in 3-7 business days.

Once order is placed we will reach out to finalize shipping details.

X Factors are built in North America.
