X Factor Complete Wash Bay System- Stationary 220v Electric- Real Deal Touchless Foaming Kit

X Factor Complete Wash Bay System - Cold Water Stationary 220v Electric Power Washer, perfect for every day washing. This belt drive unit has all the bells and whistles you could ask for in a cold water electric power washer. This unit comes with a stand to keep it off the ground. A great addition to any wash bay. Installation is as easy as possible to get you up and washing within a few hours.

The X Factor Stationary 220v Electric Power Washer combined with our Real Deal Touchless Foam Kit and the highest quality reel make for an incredible system that will cut set up and wash time down by as much as 90 percent. Take your washing and detailing to the extreme!

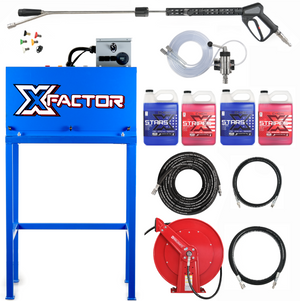

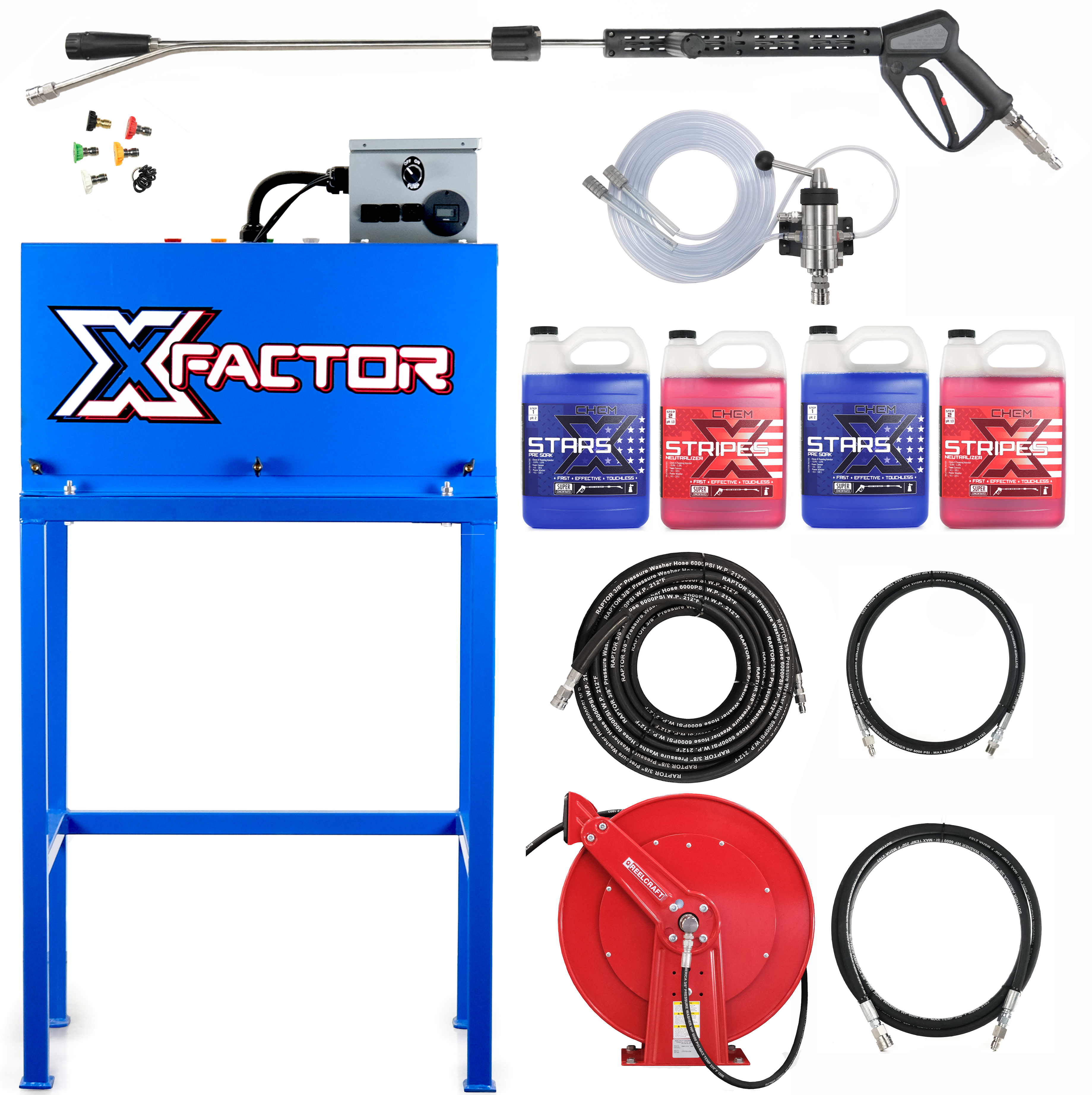

INCLUDES

1. X Factor Cold Water Stationary 220v Electric Power Washer

2. Reelcraft 100' Capacity Spring Retractable Reel

3. Suttner ST-164 Foam Injector

4. 44" Chem-X Foam Lance (Built Complete)

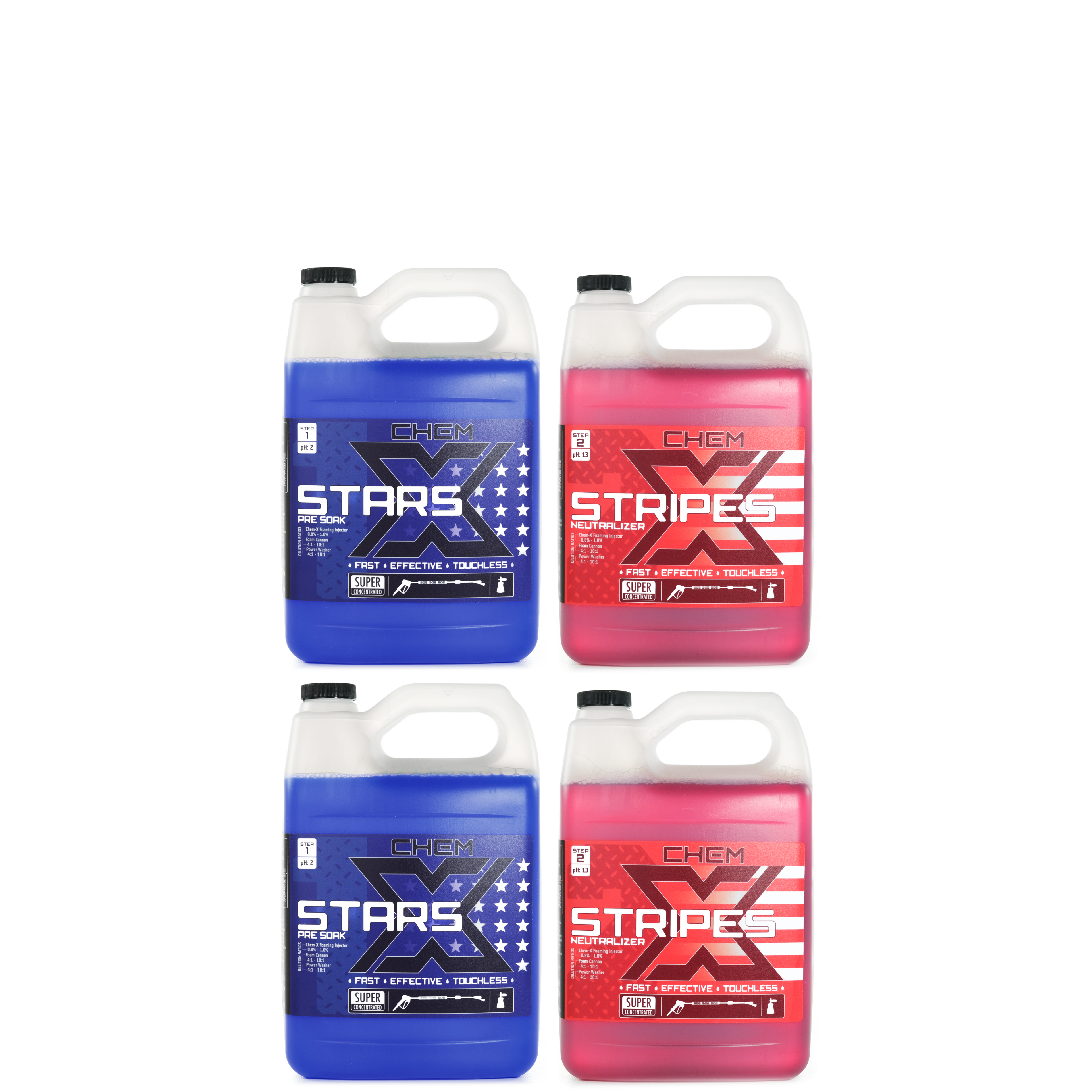

5. 2 Gallons Stars / 2 Gallons Stripes

6. 100' High Pressure Hose rated for 6000psi

7. 10' Hose Reel Connector Hose (Power washer outlet to Reelcraft Reel)

8. 10' Jumper Hose (Power Washer outlet to ST-164 Injector)

9. 0°/15°/25°/40° Nozzles

The X Factor

Pump + Plumbing Layout

These power washers feature a Commercial Duty Triplex Plunger General Pump which is rated for an inlet water temperature of 160 degrees, along with our own unique plumbing layout designed for easy serviceability.

The VRT3 Unloader Valve (pressure actuated for foaming systems) is mounted with a 3/8 screw coupler to drastically reduce repair times.

The garden hose inlet is a General Pump DuraView Filter to remove any particulates from the water line and can be visibly checked without opening.

Controls

The auto start/stop feature protects the pump from overheating while the unit is on but water is not being sprayed by automatically turning off the pump after a 15-30 second period, the dual pressure switches on the machine will sense the psi drop the next time the trigger is squeezed and turn the motor back on.

These machines also feature an hour meter to determine the best times for pump oil changes.

Stationary machines come wired with a connection/port for an optional Remote On/Off Switch. The Remote Switch is typically mounted in convenient location away from the machine. A Remote Switch can be added at time of purchase or at any point in the future.

The TechTop Motor is totally enclosed and fan cooled with thermo protection to prevent overheating.

The Real Deal Injection Kit

Designed & hand built at Chem-X. The Real Deal Kit is the optimal way to apply

our touchless wash, Stars + Stripes. Completely plug & play and compatible with almost any power washer.

This kit solves the common problems found with 2-step touchless soaps & equipment. The Real Deal is made with rock solid, stainless steel components and comes with our safest and most effective touchless wash ever. It's a no brainer, this is the easiest way to save money and time in your wash bay. MORE INFO HERE

Suttner St-164 Dual Foaming Chemical Injector

The most efficient and durable foam injector available, with a dilution range from 12:1 to 200:1. The easiest way to select between two chemicals and rinse. Simply switch lever on the top of the injector to the desired position(chem 1, chem 2, rinse) and let the soap fly.

    1. Durable Stainless Steel Construction
    2. Two 10' Pickup Tubes With Weighted Filters
    3. Injector Inlet - Standard 3/8" Male QC Plug
    4. Injector Outlet - Standard 3/8" Female QC Coupling
    5. Integrated Lever
    6. Wall/Surface Mounting Plate
    7. 18 dosing Nozzles Included

Chem-X Foam Lance Built Complete

Change between rinse and foam directly at the gun. Simply release trigger and twist The Suttner ST-58 Change Over Valve to either rinse or foam. The Chem-X Foam Lance screams quality and durability. Built with as much stainless steel as possible and designed to be very easy to use.
The Mosmatic High PSI Gun Inlet Swivel eliminates hose fatigue, swiveling under full PSI. By far the best foam lance on the market! MORE INFO HERE
    1. Suttner ST-75s Foaming Nozzle
    2. Suttner ST-58 Change over Valve
    3. Suttner
    4. ST-2305 Trigger
    5. Mosmatic DGV Swivel

Reelcraft Hose Reel + Ready Made Hoses

The Series 80000 spring retractable reels incorporate the most current design and manufacturing techniques to guarantee long life and trouble-free performance. All steel construction and a baked on powder coat finish combine to produce a rugged, corrosion-resistant product suitable for a wide variety of heavy duty applications.
  1. Reelcraft 100' Capacity Spring Retractable Reel
  2. 100' High Pressure Hose rated for 6000psi
  3. 10' Hose Reel Connector Hose (Power washer outlet to Reelcraft Reel)
  4. 10' Jumper Hose (Power Washer outlet to ST-164 Injector)

    -

    Figure out Your current rinse nozzle size

    Use the chart below to figure out your nozzle size. You will need your power washer's current GPM and PSI. This information is usually found on a sticker located on your machine.


    ST-164/ST-160 Dosing Nozzle RATIO + PERCENTAGE Chart

    The chart below shows dosing nozzle size (opening) and the percentage of draw when the chemical used has the same viscosity as water.

    Specs

    Pump

    • 4.0GPM@2000PSI (5hp model)
    • 4.0GPM@3000PSI (7.5hp model)
    • Commercial Duty Triplex Plunger General Pump (Rated for water inlet temperature of 160 degrees max)
    • Oil Bath Crank Case
    • Stainless Valves
    • Brass Manifold
    • Belt Drive
    • Thermo Pump Protector

    Electric Motor (5hp + 7.5hp)

    • 220 Volt
    • 1 Phase
    • 30 Amps (5hp model)
    • 50 Amps (7.5hp model)
    • 1750 RPM
    • Totally Enclosed Fan Cooled
    • Full Frame
    • 1.15 Service Factor
    • Thermal Overload Protection
    • Continuous Duty

      Electrical Control Panel

      • Heavy Duty On/Off Cam Switch with Included Auto Stop/Start Time Delay Off
      • Nema 4
      • Water Tight
      • Easy Access
      • Wired for Optional Remote On/OFF Switch

      Frame

      • Tip Ahead Shroud With Built in Belt Guard
      • All Powder Coated
      • Stand Mounted

      Power Washer Dimensions

      • Height: 58.5" (to the top of the control box)
      • Width: 29"
      • Depth: 24.5"

        Reel Specs

        • Reinforced Steel
        • Full Flow Stress Free Swivel design
        • Long Life Drive Spring
        • Quality Finish and Corrosion Resistant
        • Floor, wall or ceiling mountable
        • 5,000 psi rated
        • 210 degrees max temperature
        • Durable, power coated construction
        • Made in the USA

        Reel Dimensions

        • Length: 24"
        • Width: 10.5"
        • Height: 25.375"
        • Weight: 85 lbs

        *Shipping

        X Factors ship free, via freight. Once order is placed we will reach out to finalize shipping details.

        - Cold Water Stationary Power Washers are currently stocked at Chem-X and normally ship in 5-7 business days.

            X Factors are built in North America.
