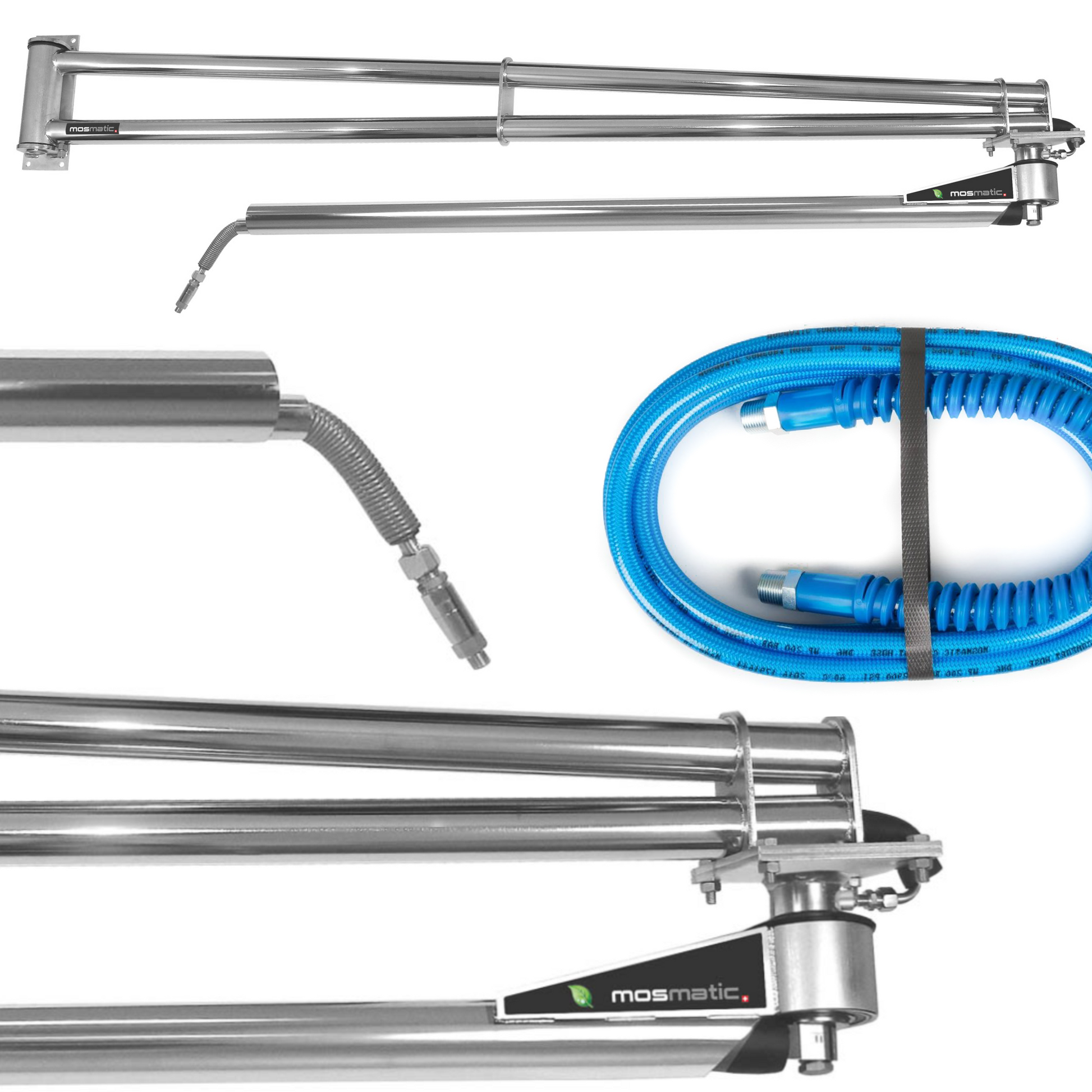

The Complete Mosmatic Wall Boom Extension Kit (Total Reach 15' 7")

Mosmatic Wall Boom Extension WSA 1 inner pipe 1 inlet 8ft 2in 60.532

Whenever extended lengths and maximum flexibility are required, the wall-boom-extension is perfect for the job. Prime examples are truck wash bays, mining facilities, air craft maintenance and manufacturing plants.

  • Smooth, comfortable operation
  • Extended work radius
  • Solid construction

Length 8'2"

Weight 56 lbs

Technical data:

  • Pressure: 4000 psi (27.5 MPa)
  • Temperature: 250°F
  • Inlet (top & side): 3/8" NPTF (other options available)
  • Outlet: 3/8" NPTF (other options available)
  • Throughput medium: water, oil, air at pH 3-12

Mosmatic Ceiling Boom Inline DKP 7ft 5in 66.059

The classic straight ceiling boom has uses in many industrial fields. A few examples are car wash, food processing, mining and manufacturing. A real all-around product with versatile applications anywhere liquids, air or gas are used.

  • 360° smooth rotation
  • Rated to 4000psi
  • Sealed bearing design
  • Multiple industrial applications

Length: 7'5"

Weight: 24.5 lbs

Technical data:

  • Pressure: 4000 psi
  • Temperature: 250°F
  • Inlet (top & side): 3/8" NPTF
  • Outlet: 3/8" NPTF
  • Throughput medium: water, oil, air at pH 3-12

3/8” HP-Comfort Hose

The included 3/8” HP-Hose Comfort by Mosmatic is one of the nicest low cost upgrades for use with ceiling or wall mounted booms and zip line systems. The lightweight construction makes using any wash down system a breeze and almost completely eliminates the awareness of having a hose in the mix at all.

  • Rated for 2900PSI
  • Lightweight construction
  • Inner core PES
  • 16’ Length
  • IN 3/8”NPTM
  • OUT 3/8”NPTM

Weight 1.3 lbs

Boom Adaptor

Mosmatic fitting VER 7000 psi brass nickel NPT 3/8inNPTF to Male G1/4inM 51.129

Ideal Boom Placement

Mounting Plate Measurements

*This item ships via freight direct from Mosmatic, allow 5-10 business days for delivery.
