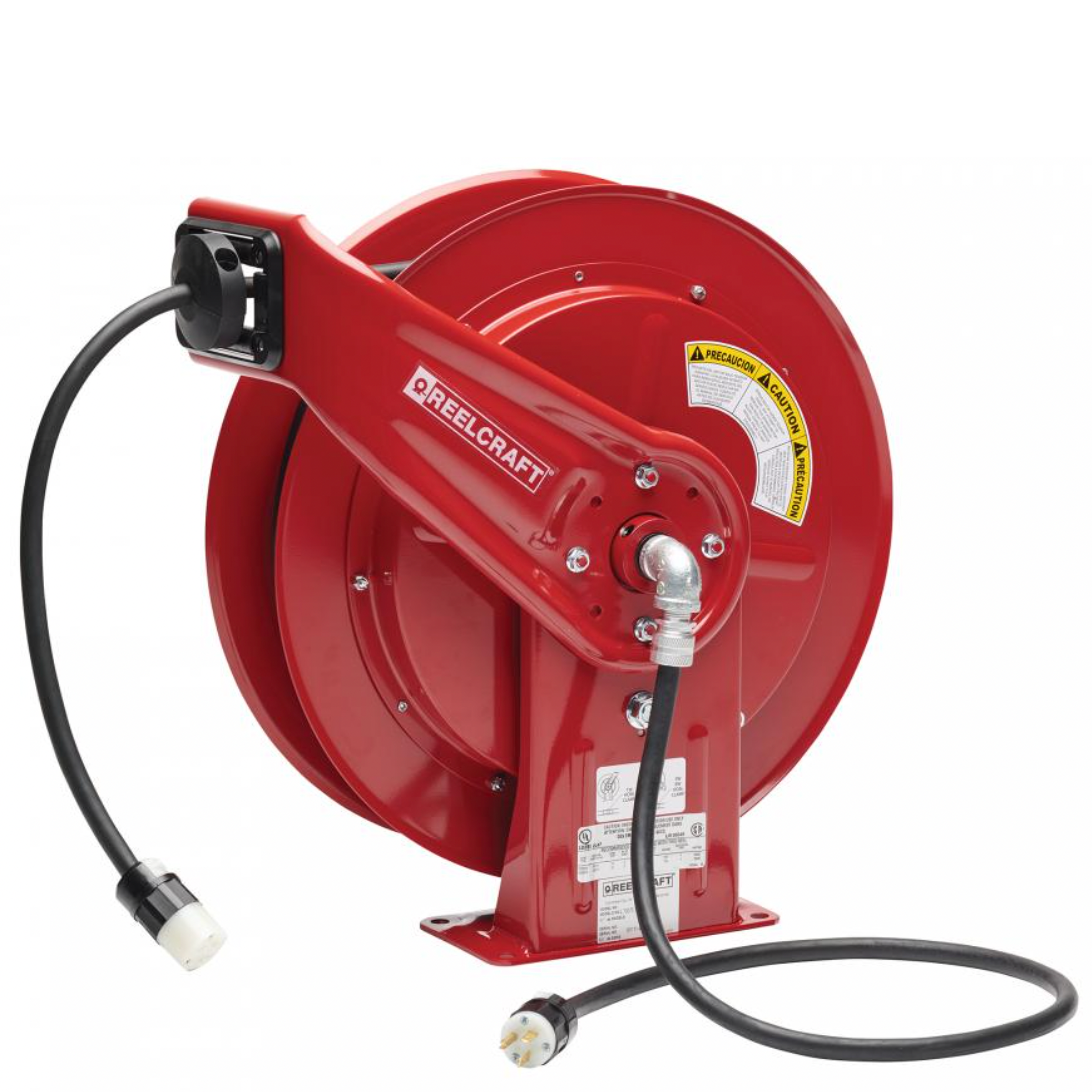

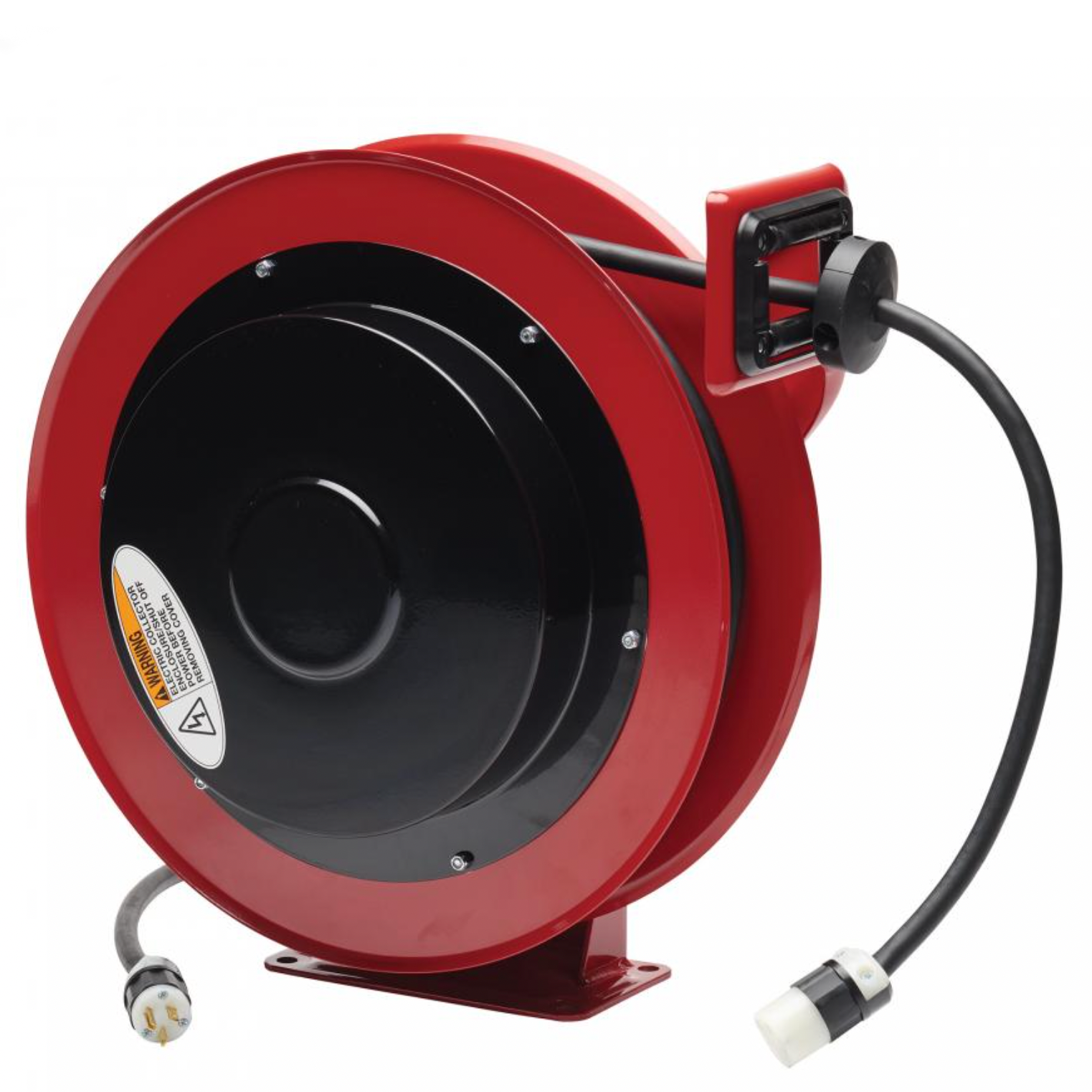

Reelcraft Electric Cord Reel Without Cord (L 70075 Spring Return 12 AWG / 3 Conductor x 75ft Capacity, 20 AMP)

Reelcraft’s new Series L 70000 cord reels are designed to accommodate up to 75 feet of 12 gauge cord. The heavy duty base design, all steel construction and a baked-on powder coat finish combine to produce a rugged, corrosion-resistant product. A newly redesigned latching mechanism provides longer service life of the latch components. The containerized drive spring offers safer and easier handling during maintenance. Two sealed ball bearings produce a smoother spool rotation and easier operation. The guide arm adjusts to seven positions for various mounting locations and applications. *For indoor, non-weather tight applications only.


  • 75' capacity for 12 AWG Cord (Not included)
  • Guide rollers - One piece design and stainless steel pins offer greater strength and easier serviceability.
  • Floor, wall or ceiling mountable
  • Compact design - 25% smaller than the heavy duty Series 80000 reels.
  • All-steel electrical enclosure - Offers a stronger, more durable protective cover of electrical components.
  • UL listed - All models UL listed from 10 - 20 Amps
  • Durable baked on powder coated finish
  • Made in the USA


Length: 19.75"

Width: 12.5"

Height: 20.25"

Weight: 58lbs

*This item ships directly from Reelcraft, allow 2-3 weeks for delivery
