     X Factor Complete Wash Bay System: Hot Water Portable 220v Electric - Real Deal Touchless Foaming Kit

    The X Factor Hot Water Portable 220v Electric Power Washer is our most flexible machine, the perfect solution for shops who need a portable electric unit with heat.  We have hand selected the top components to create an incredible all in one self contained wash bay system. Installation is very minimal, simply attach the wheels, connect the gun and supply the machine water and power. Typically you can be up and washing within an hour or so.

    The X Factor Portable Hot Water Power Washer combined with our Real Deal Touchless Foam Kit make for an incredible system that will cut wash time down by as much as 90 percent.

    Take your washing and detailing to the extreme!

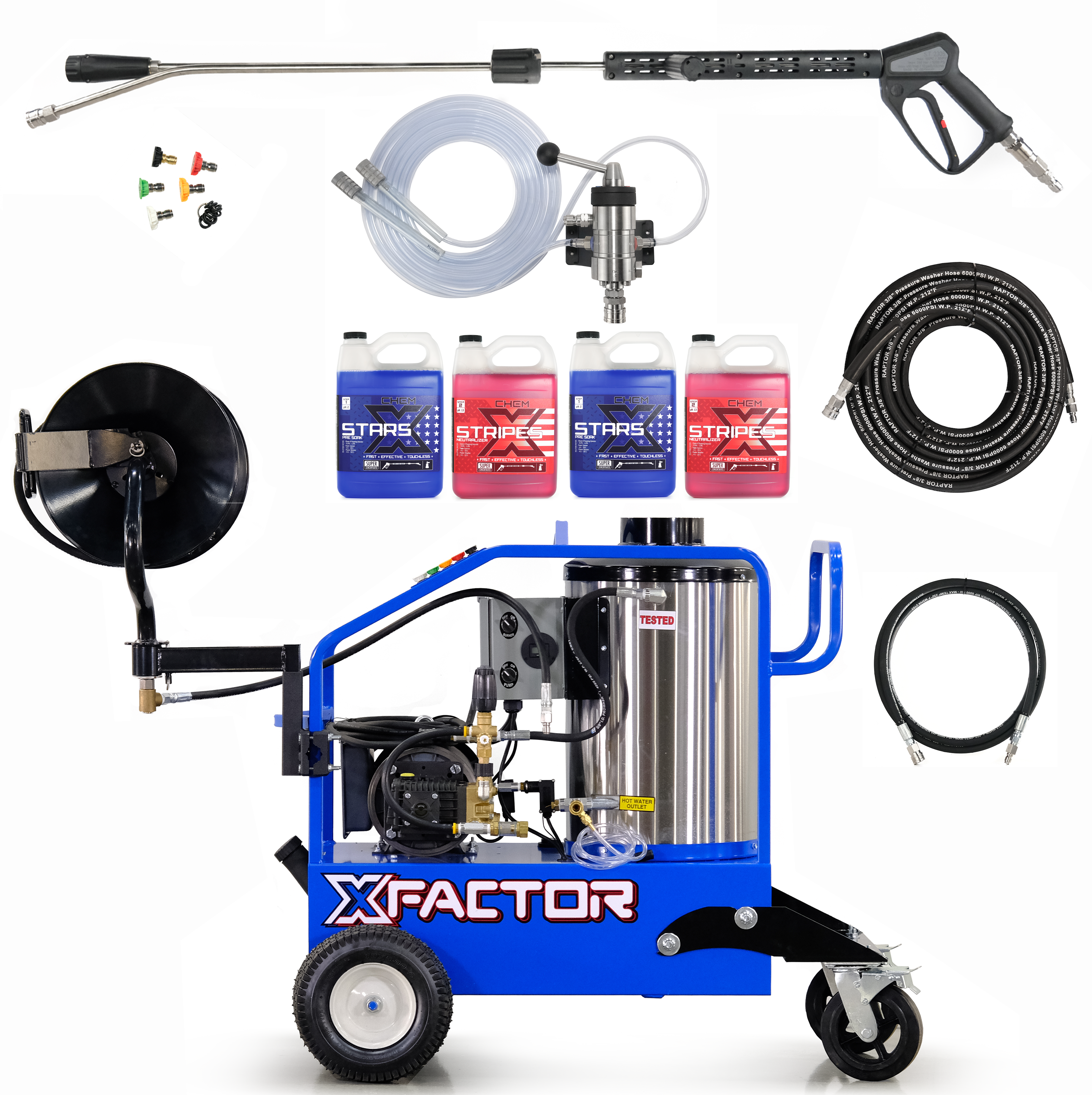

    INCLUDES

    1. X Factor Hot Water Portable 220v Electric Power Washer
    2. Front Mount Swiveling Hose Reel
    3. 44" Chem-X Foam Lance (Built Complete)
    4. Suttner ST-164 Dual Foam Injector

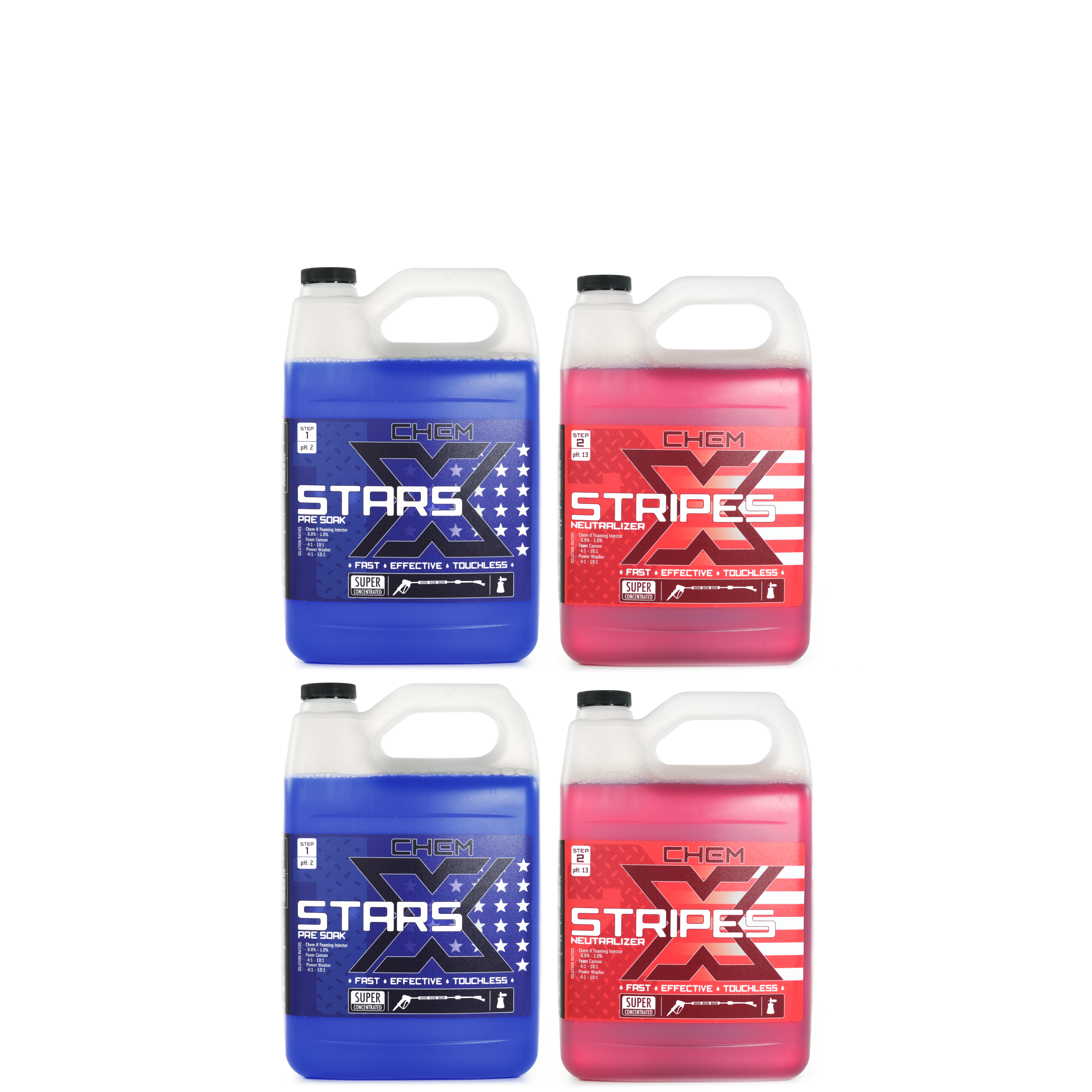

    5. 2 Gallons Stars / 2 Gallons Stripes
    6. 100' High Pressure Hose rated for 6000psi
    7. 10' Jumper Hose (Power Washer outlet to ST-164 Injector)
    8. 1 Soap Nozzle + 0°/15°/25°/40° Nozzles

    The X Factor

    Pump + Plumbing Layout

    These power washers feature a Commercial Duty Triplex Plunger Pump which is rated for an inlet water temperature of 140 degrees, along with our own unique plumbing layout designed for easy serviceability.

    The VRT3 Unloader Valve (pressure actuated for foaming systems) is mounted with a 3/8 screw coupler to drastically reduce repair times.

    The garden hose inlet is a General Pump DuraView Filter to remove any particulates from the water line and can be visibly checked without opening.

    Controls

    The auto start/stop feature protects the pump from overheating while the unit is on but water is not being sprayed by automatically turning off the pump after a 15-30 second period, the dual pressure switches on the machine will sense the psi drop the next time the trigger is squeezed and turn the motor back on.
    These machines also feature an hour meter to determine the best times for pump oil changes.
    The TechTop Motor is totally enclosed and fan cooled with thermo protection to prevent overheating.


    Burner + Coil


    Quality North American made oil fired burners and controls with adjustable thermostats are used for efficiency, dependability and serviceability.

    Elliptically wound cold coiling process of stretched reduced full body normalized ASTM A53 GRB schedule 80 pipe. The coil is structurally braced to minimize pipe wear and vibration. It is sealed with a ceramic blanket in a stainless steel housing.

    Wheels

    4 Fixed Wheels = (4)-13" foam filled wheels that do not swivel, best for soft ground use.

    2 Fixed Wheel + 2 Swiveling Casters = (2) front  13" fixed foam filled wheels plus (2) rear 8" swiveling castors, best for hard ground use.

    Hose + Reel

    A front mount adjustable receiver holds the swiveling hose reel. The hose reel has the ability to lock at both the barrel and swivel. Included is a 100' dual wire 3/8" high pressure hose rated for 6000 psi to give you that extra reach and durability.

    The Real Deal Injection Kit


    Designed & hand built at Chem-X. The Real Deal Kit is the optimal way to apply our touchless wash, Stars + Stripes. Completely plug & play and compatible with almost any power washer. This kit solves the common problems found with 2-step touchless soaps & equipment. The Real Deal is made with rock solid, stainless steel components and comes with our safest and most effective touchless wash ever. It's a no brainer, this is the easiest way to save money and time in your wash bay.

    Suttner St-164 Dual Foaming Chemical Injector

    The most efficient and durable foam injector available, with a dilution range from 12:1 to 200:1. The easiest way to select between two chemicals and rinse. Simply switch lever on the top of the injector to the desired position(chem 1, chem 2, rinse) and let the soap fly.

    1. Durable Stainless Steel Construction
    2. Two 10' Pickup Tubes With Weighted Filters
    3. Injector Inlet - Standard 3/8" Male QC Plug
    4. Injector Outlet - Standard 3/8" Female QC Coupling
    5. Integrated Lever
    6. Wall/Surface Mounting Plate
    7. 18 dosing Nozzles Included

    Chem-X Foam Lance Built Complete

    Change between rinse and foam directly at the gun. Simply release trigger and twist The Suttner ST-58 Change Over Valve to either rinse or foam. The Chem-X Foam Lance screams quality and durability. Built with as much stainless steel as possible and designed to be very easy to use. The Mosmatic High PSI Gun Inlet Swivel eliminates hose fatigue, swiveling under full PSI. By far the best foam lance on the market! MORE INFO HERE

    1. Suttner ST-75s Foaming Nozzle
    2. Suttner ST-58 Change over Valve
    3. Suttner ST-2305 Trigger
    4. Mosmatic DGV Swivel


    ST-164/ST-160 Dosing Nozzle RATIO + PERCENTAGE Chart

    The chart below shows dosing nozzle size (opening) and the percentage of draw when the chemical used has the same viscosity as water.




    Specs

    Pump

    • 3.5GPM@2400PSI (5hp model)
    • 3.5GPM@3000PSI (7.5hp model)
    • Commercial Duty Triplex Plunger Pump (Rated for water inlet temperature of 140 degrees max)
    • Oil Bath Crank Case
    • Stainless Valves
    • Brass Manifold
    • Direct Drive
    • Thermo Pump Protector

    Electric Motor (5hp + 7.5hp)

    • 220 Volt
    • 1 Phase
    • 30 Amps (5hp model)
    • 50 Amps (7.5hp model)
    • 1750 RPM
    • Totally Enclosed Fan Cooled
    • Full Frame
    • 1.15 Service Factor
    • Thermal Overload Protection
    • Continuous Duty

      Electrical Control Panel

      • Heavy Duty On/Off Cam Switch with Included Auto Stop/Start Time Delay Off
      • Power Cord Length 25' (Plug end not included)
      • Nema 4
      • Water Tight
      • Easy Access

      Heating Coil

      • Scheduled 80 Pipe
      • Elliptically Wound & Stretched
      • No Seam Welds
      • Structurally Braced to Reduce Vibration & Pipe Wear
      • Sealed with Ceramic Blanket
      • Stainless Steel Housing

      Burners

      • Oil Fired
      • Adjustable Thermostat
      • On/Off Switch
      • North American Made
      • Dependable
      • Serviceable Frame

      Frame

      • All Welded
      • Powder Coated
      • 12 Gauge Bent Steel Roll Cage
      • Lifting Bar
      • 3/4” Threaded Axles Welded to Frame
      • 13” Foam Filled Wheels Attached with Lock Nuts
      • 10 Gallon Poly Fuel Tank

        Power Washer Dimensions

        • Height: 44"(w/reel: 55")
        • Width: 29"
        • Length: 48"(w/reel: 69")
        • 5hp Model: 550 lbs
        • 7.5hp model: 600 lbs

        *Shipping

        X Factors are stocked at Chem-X and are tested and prepared for shipping via freight in 3-7 business days from the point of order.

        Once order is placed we will reach out to finalize shipping details.

                X Factors are built in North America.
