X Factor Wall Mounted 220v Electric Power Washer
$6,192.00 - $6,859.00
X Factor wall mounted 220v electric power washer
These units reflect our lifetime of experience of wrenching on power washers in the field. We have now designed the most durable power washer layouts for all situations. We have hand selected and assembled the top components to create an incredible wash bay system shipped to you on one pallet. Installation is as easy as possible to get you up and washing within a few hours.

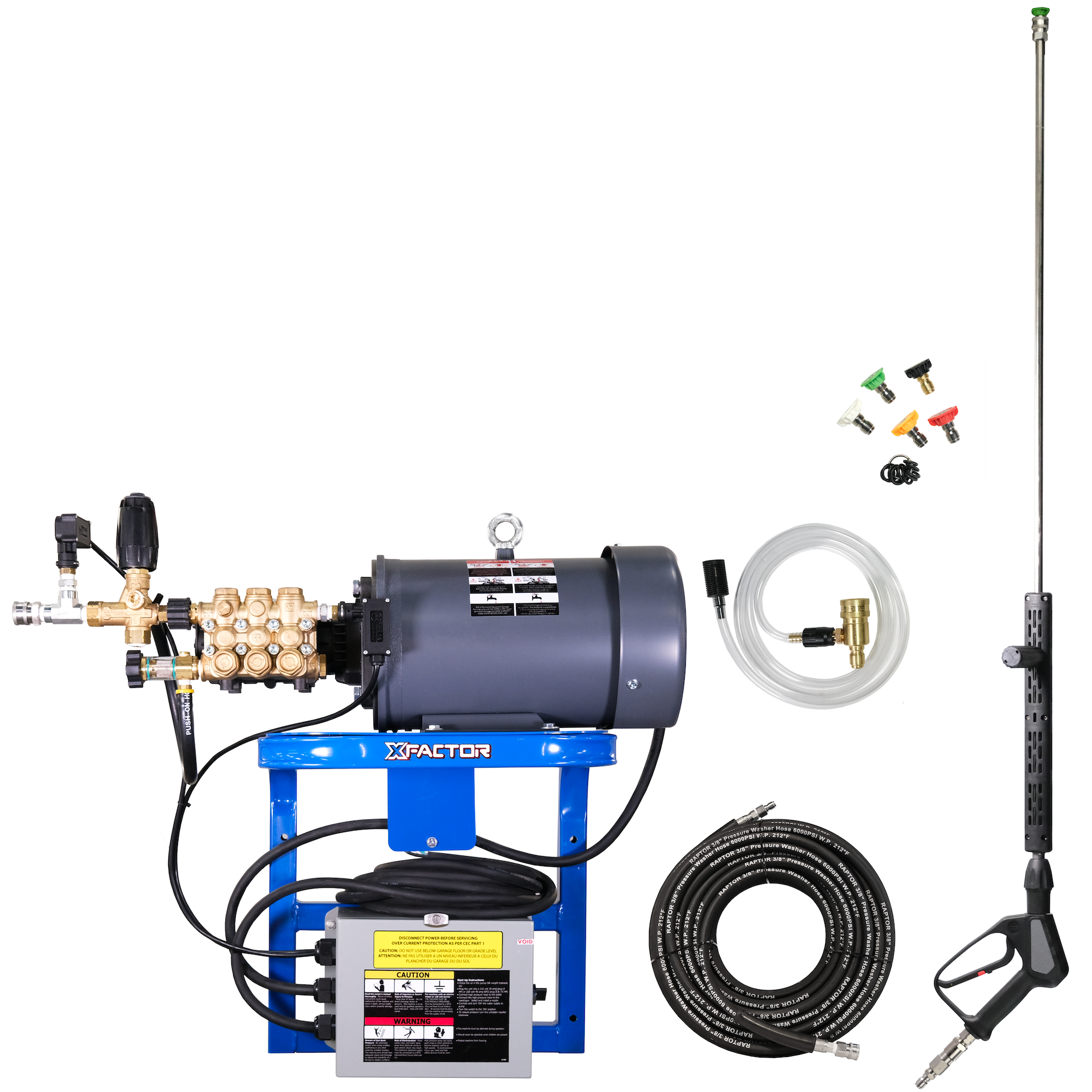

INCLUDES

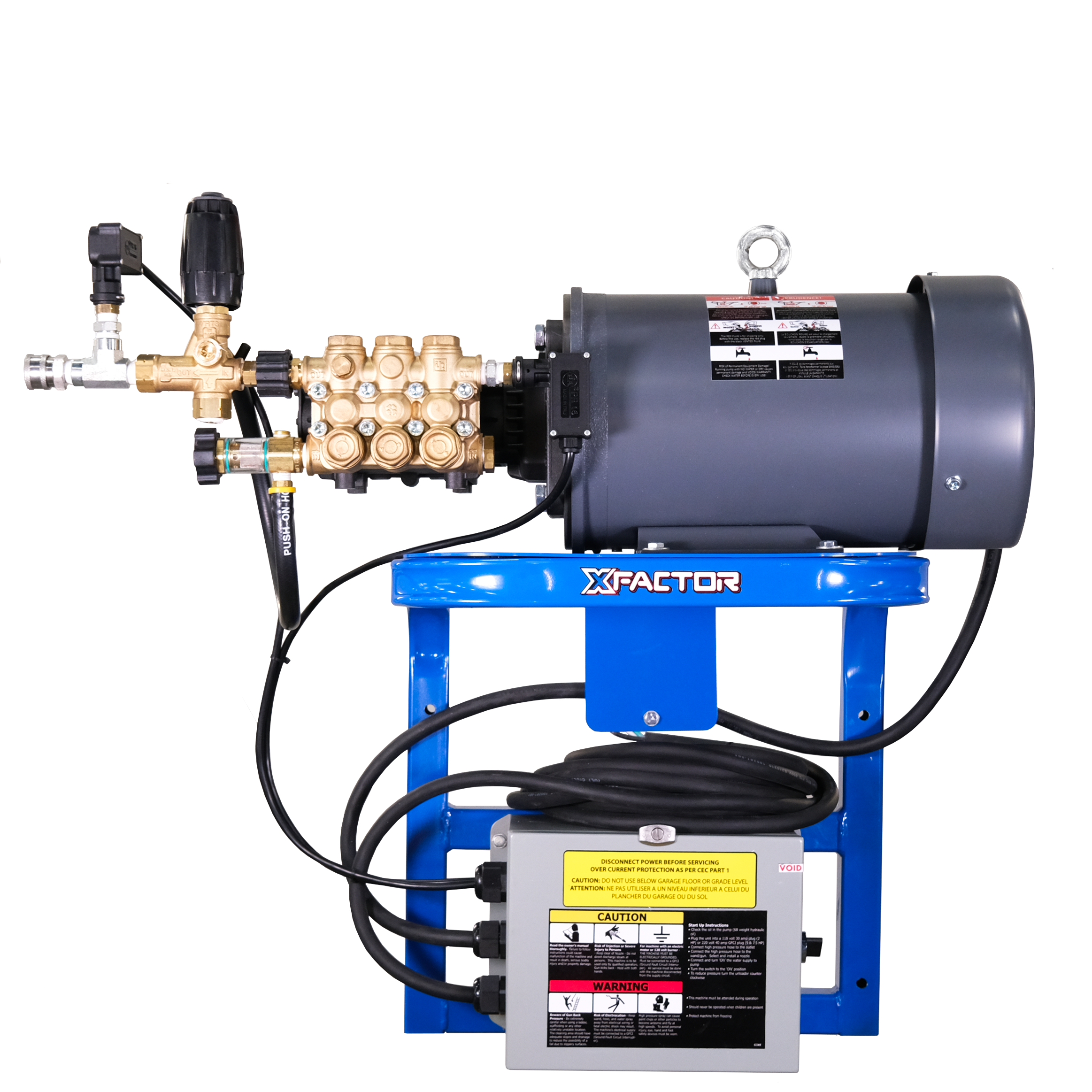

1. X Factor Wall Mounted 220v Electric Power Washer

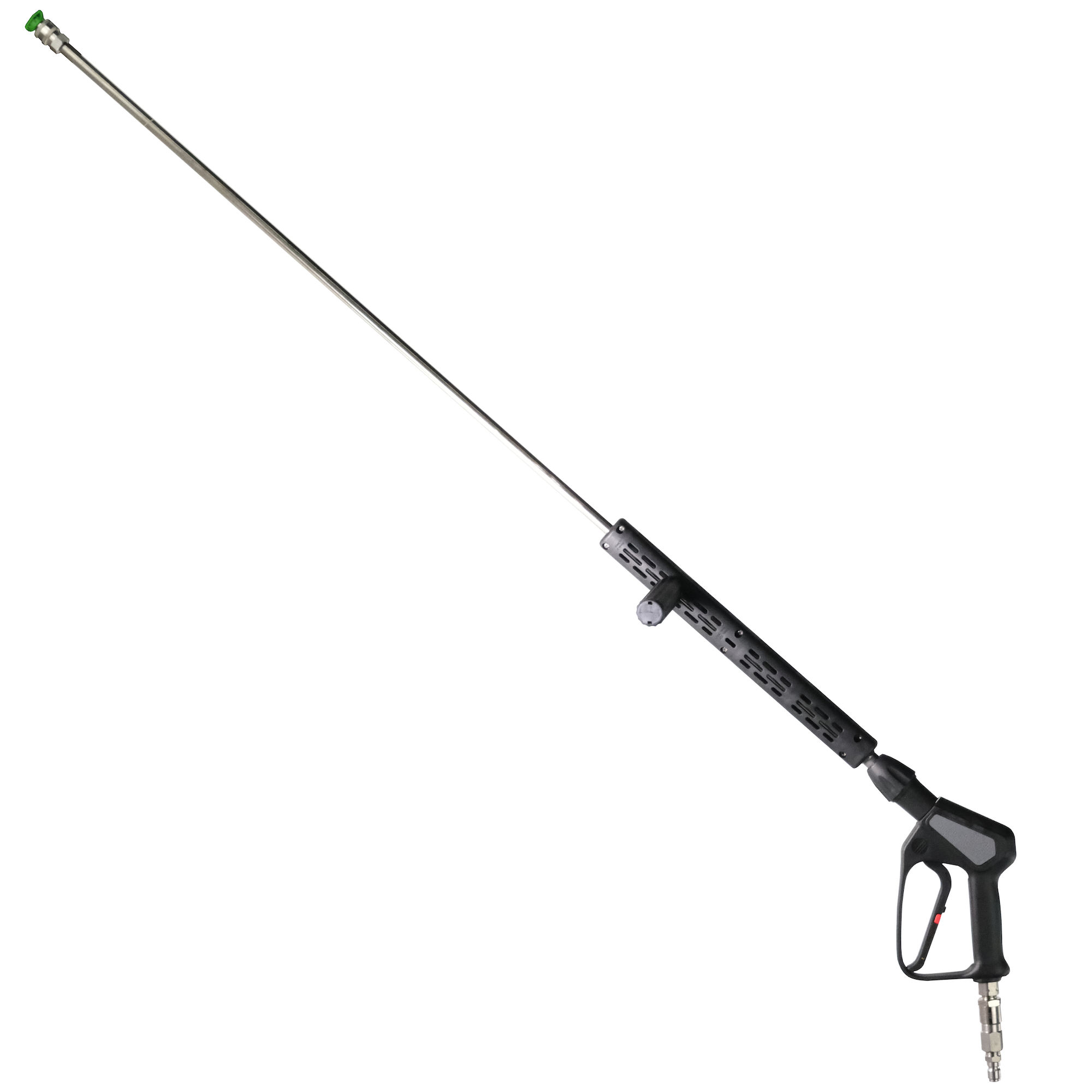

2. Suttner 48" Gun and Wand Assembly with KEW Connect System

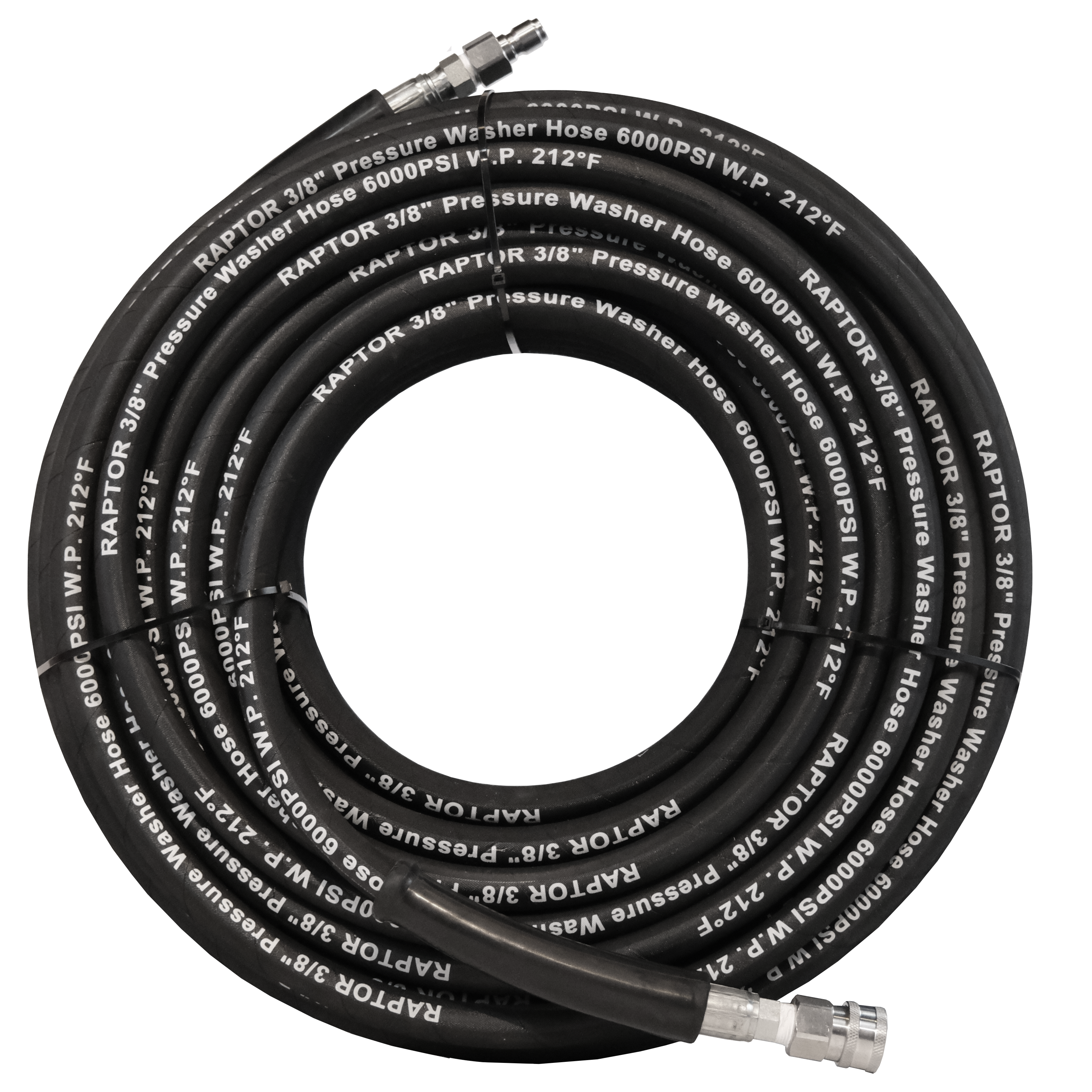

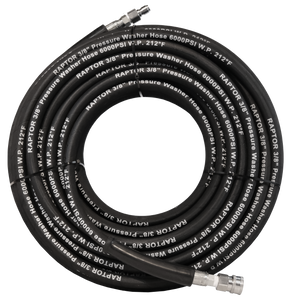

3. 100' x 3/8" 6000psi High Pressure Hose Hose

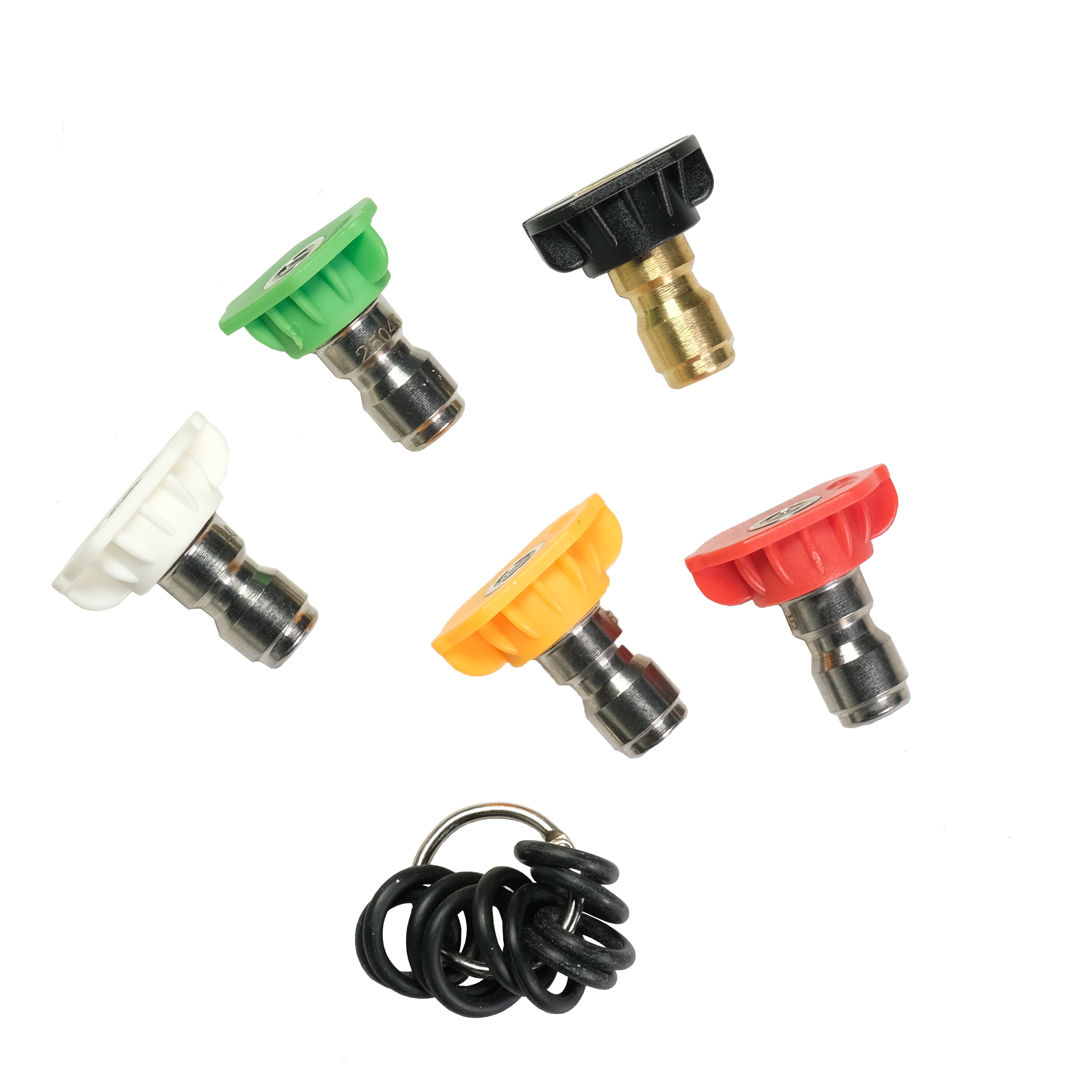

4. 1 Soap Nozzle + 0°/15°/25°/40° Nozzles

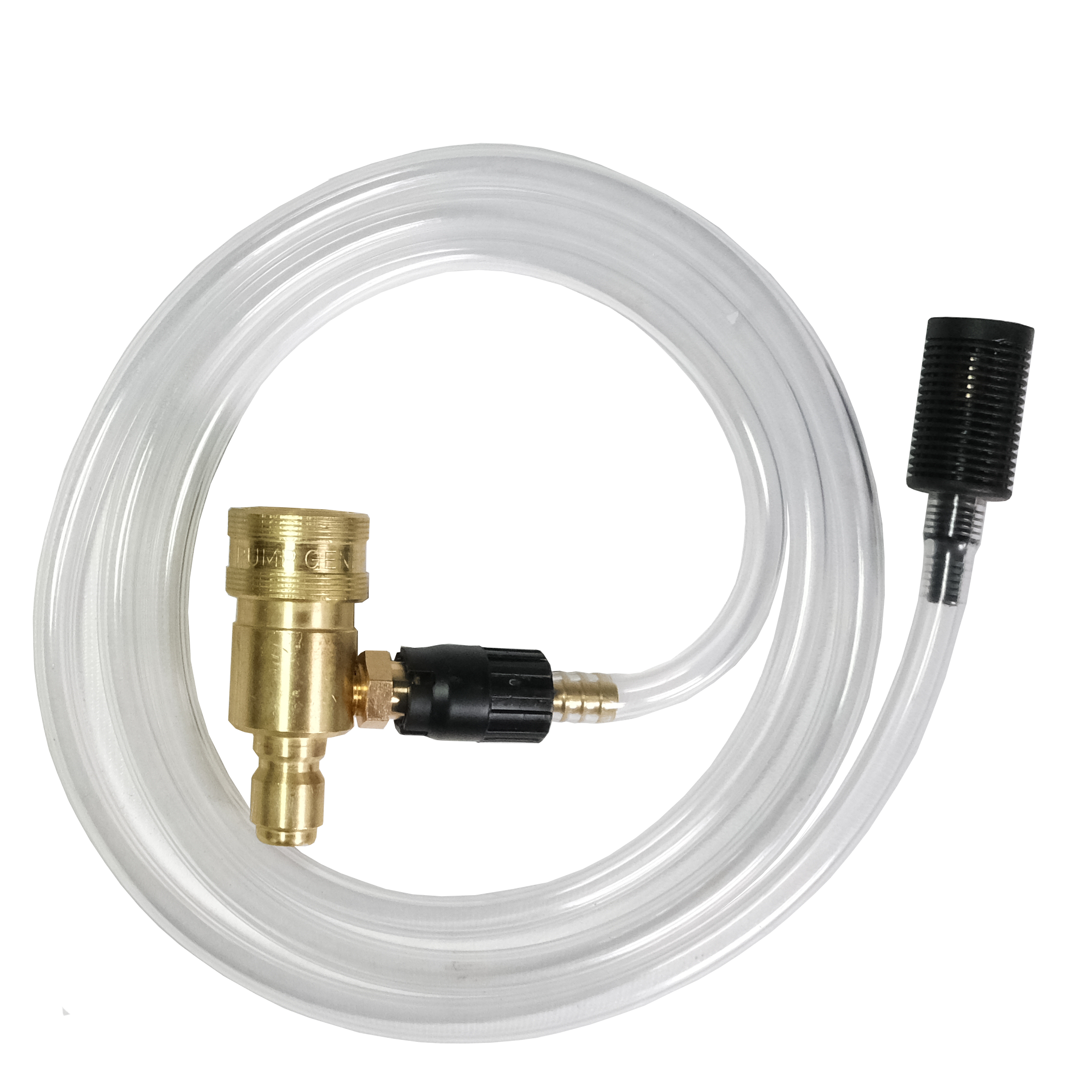

5. Downstream Chemical Injector
THE X FACTOR
Pump + Plumbing Layout
These power washers feature a Commercial Duty Triplex Plunger Pump which is rated for an inlet water temperature of 140 degrees, along with our own unique plumbing layout designed for easy serviceability. The VRT3 Unloader Valve (pressure actuated for foaming systems) is mounted with a 3/8 screw coupler to drastically reduce repair times, this layout also has minimal 90 degree fittings which helps to increase output PSI. The garden hose inlet is a General Pump DuraView Filter to remove any particulates from the water line and can be visibly checked without opening.
Controls
The auto start/stop feature protects the pump from overheating while the unit is on but water is not being sprayed by automatically turning off the pump after a 15-30 second period, the dual pressure switches on the machine will sense the psi drop the next time the trigger is squeezed and turn the motor back on.
These machines also feature an hour meter to determine the best times for pump oil changes. The TechTop Motor is totally enclosed and fan cooled with thermo protection to prevent overheating.
User Interface
We have paired these units with the highest quality trigger, lance and hose combination on the market. We chose the Suttner ST-2305 Squeeze Trigger with KEW Connects and a 48" Stainless Steel Lance. More info here.
KEW Connects give the flexibility of multiple length lances and attachments without the common o-ring issues typically seen in standard quick connects, they are much less likely to jam and also allow for swiveling the lance to get into tough areas like wheel wells and engine compartments.
The Mosmatic High PSI Gun Inlet Swivel eliminates hose fatigue, swiveling under full PSI. The dual wire braided 100' Hose offers maximum durability, rated for 6000psi.
Installation Tips
Maintenance Tips
Features
NEMA 4 Water Tight Controls Featuring Auto Start/Stop with Time Delay
Commercial Duty Triplex Plunger General Pump
Heavy Duty Electric Motor (1750RPM/TEFC/Full Frame/Thermo Overload Protection/Continuous Duty)
Powder Coated Wall Mount Frame
Specs
Pump
- 3.5GPM@2400PSI (5hp model)
- 3.5GPM@3000PSI (7.5hp model)
- Commercial Duty Triplex Plunger Pump (Rated for water inlet temperature of 140 degrees max)
- Oil Bath Crank Case
- Stainless Valves
- Brass Manifold
- Direct Drive
- Thermo Pump Protector
Electric Motor (5hp + 7.5hp)
- 220 Volt
- 1 Phase
- 30 Amps (5hp model)
- 50 Amps (7.5hp model)
- 1750 RPM
- Totally Enclosed Fan Cooled
- Full Frame
- 1.15 Service Factor
- Thermal Overload Protection
- Continuous Duty
Electrical Control Panel
- Heavy Duty On/Off Cam Switch with Included Auto Stop/Start Time Delay Off
- Power Cord Length 25'
- Nema 4
- Water Tight
- Easy Access
Frame
- One Piece Bent Steel Base
- All Powder Coated
- Wall Mount
Power Washer Dimensions
- Height: 28"
- Width: 32"
- Depth: 16"
- 5hp model: 200 lbs
- 7.5hp model: 250 lbs
*Shipping
X Factors are stocked at Chem-X and are tested and prepared for shipping via freight in 3-7 business days from the point of order.
Once order is placed we will reach out to finalize shipping details.
