The Big Easy Kit

The Big Easy Foam Injection Kit was designed for simplicity and ease of use in mind. This is the ideal injection kit to apply a single soap via foam without having to think about ratios, mixing or refilling. With the addition of the Chem-X Foam Lance you get full control of foam or rinse at the gun without having to go back to the power washer. It does not get much easier than that!

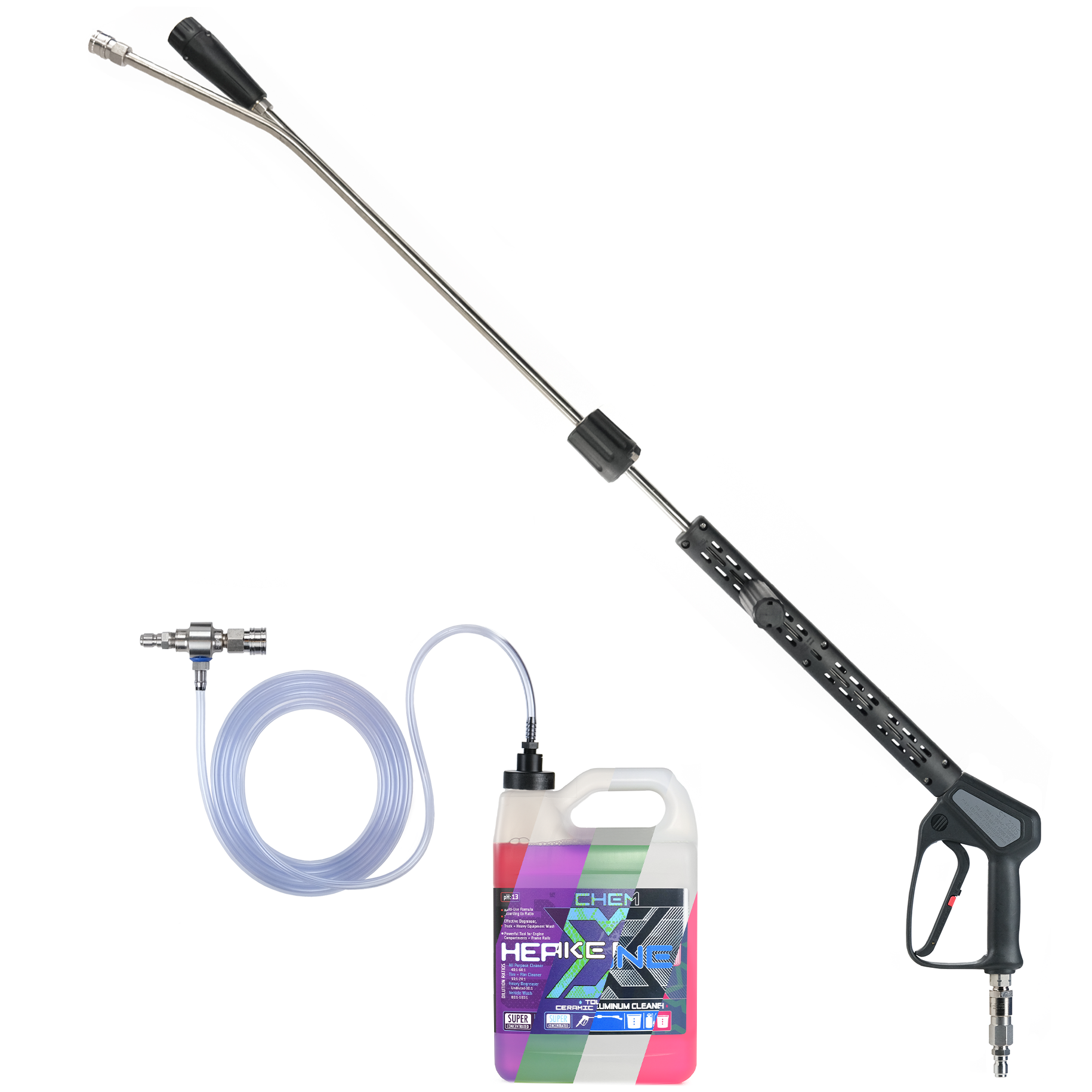

INCLUDES

1. Suttner ST-160 Single Foaming Chemical Injector
2. 10' Pick Up Tube + Safe Flow Lid and Standard Weighted Strainer
3. Chem-X Foam Lance Built Complete - Your Choice of Length
4. Liquid Option: Choose One OR None

-

SUTTNER ST-160 Injector

The Suttner ST-160 Chemical Injector is the most efficient and durable foam injector available, with a dilution range from 10:1 to 200:1. It automatically dilutes the soap to a predetermined strength eliminating soap waste or pre-mixing. The ST-160 arrives pre-set by us to draw at 100:1(1%) dilution, the ideal strength for all of our super concentrated liquids. MORE INFO HERE.

-

Plug + Play

Uses 4-5x Less Soap Than Traditional Style Injectors

9 Dosing Nozzles Included

Durable Stainless Steel Construction

*Other downstream injectors must be removed from your machine.
*Limited to 150' of power washer hose after the injector.
*ST-160 injectors come standard with a 3/8" QC Plug on the inlet and a 3/8" QC Coupling on the outlet. QC orientation can be reversed upon request.

-

pick up tube

Includes both the Safe Flow Lid + The Standard Style & 10' of pick tube that can be cut to any length.

SAFE FLOW LIDS provide safe and convenient dispensing of chemicals from 1 gallon containers. The threaded lid keeps out contaminants, prevents chemical splashing and spillage. These unique, heavy-duty, machined polypropylene lids attach to a chemical pick up tube with a 1/4" hose barb and can be quickly unscrewed and attached to another container or easily removed and stored. Includes a hastelloy strainer and suction assembly to place inside the chemical container.

STANDARD pick up tube with weight & strainer. Compatible with 1 gallon containers, 5 gallon pails & 55 gallon drums.

-

Your choice of CHEM-X FOAM LANCE length

A new addition to The Real Deal is the choice of lance length and style. The Chem-X Foam Lance comes in multiple length options, 44", 32" or 14". We have also added a snub gun style option with just the ST-75 foamer for a disconnectable set up. All variations come with the Suttner ST-2305 Spray Gun and the Mosmatic DGV Inline Swivel.

The Chem-X Foam Lance was designed and hand built by Chem-X. We took the very best components and pieced them together in a layout with pure functionality and durability in mind. An almost fully stainless lance that is built to hold up in harsh environments. With this lance you can change between foam and rinse directly at the gun. Simply release the trigger and twist The Suttner ST-58 Change Over Valve a quarter turn to either rinse or foam. By far the best foam lance on the market! MORE INFO HERE.

-

YOUR CHOICE OF SOAP

LIQUID-X: Our most extreme foaming mitt wash formulated to leave a polymer barrier on your vehicle that generates beading and protects the surface.

HEAVY DUTY: An extremely flexible foaming truck wash that can tackle anything from a simple maintenance wash to heavy degreasing.

SNAKE OIL: Our touchless Si02 ceramic foam sealant. Adds an extremely durable hydrophobic layer of protection to any and all vehicles.

M-SHINE: A high foaming polished aluminum cleaner and maintainer.

FOAM: A high foaming mitt wash without any additives.

-

How to Install

1. Connect ST-160 injector after power washer and before your high psi hose. The ST-160 will be made ready with a stainless 3/8" quick connect plug on the inlet and a stainless 3/8" quick connect socket on the the outlet.

2. Place chemical pick up tube directly into soap.

3. Foam all of the things!

• Injector will be set to run at 100:1 unless specified otherwise, this can be changed by simply changing metering tip inside injector barb.
• If using a hot water machine, scale build up from your coil can plug injector or foam head. On start up always run with injector in rinse mode for about 30-60 seconds to flush out any build up.
• If a jumper hose is needed to go from your power washer to ST-160 injector please see our selection of hoses in accessories.

-

Figure out Your current rinse nozzle size

Use the chart below to figure out your nozzle size. You will need your power washer's current GPM and PSI. This information is usually found on a sticker located on your machine.

-

ST-164/ST-160 Dosing Nozzle RATIO + PERCENTAGE Chart

The chart below shows dosing nozzle size (opening) and the percentage of draw when the chemical used has the same viscosity as water.

How To Repair Common Issues on Suttner Foam Gear

SPECS

Chem-X Foam Lance

• Stainless Steel Components
• Min/Max Flow Rate: 1-6gpm
• Min/Max PSI: 1000-4000psi

Suttner ST-160

• 9 Metering/Dosing Nozzles, chemical can be set to desired strengths
• Min/Max Flow Rate: 1-12gpm
• Min/Max PSI: 1000-4000psi
• Rated for 212 Degree Water

Suttner 2305 Spray Gun

• Max 5,000 PSI
• Max 300℉
• 12 GPM Flow Rate
